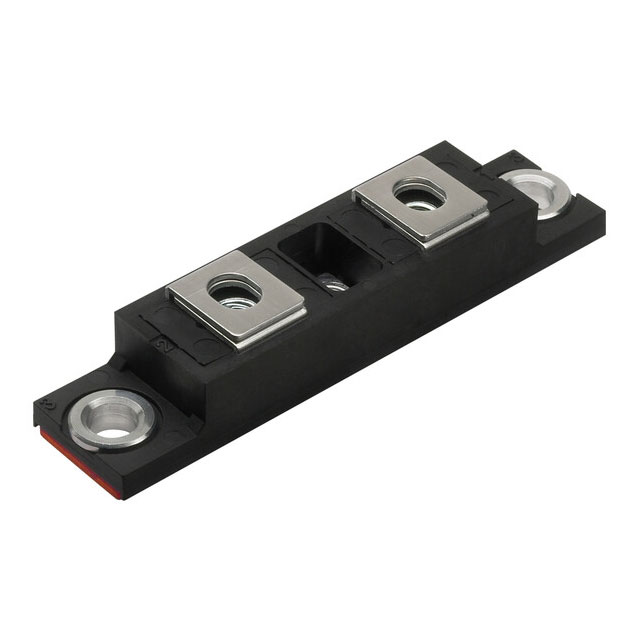

VS-VSUD510CW60
DIODE MODULE GP 600V 619A TO244Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division FRED Pt® VS-VSUD510CW60 is a diode module featuring a common cathode configuration with two diodes. This device offers a maximum DC reverse voltage of 600V and a substantial average rectified current capability of 619A per diode. The forward voltage drop is specified as a maximum of 1.17V at 250A. Engineered for demanding applications, it exhibits a reverse leakage current of 330 µA at 600V. The TO-244AB package facilitates efficient chassis mounting for optimal thermal management. With a fast recovery time (trr) of 270 ns, this module is suitable for high-power switching applications in industries such as industrial power supplies, electric vehicle charging, and renewable energy systems. The operating junction temperature range extends from -40°C to 175°C.
Additional Information
Series: FRED Pt®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | TO-244AB |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 270 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 619A |
| Supplier Device Package | TO-244 |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V @ 250 A |
| Current - Reverse Leakage @ Vr | 330 µA @ 600 V |
