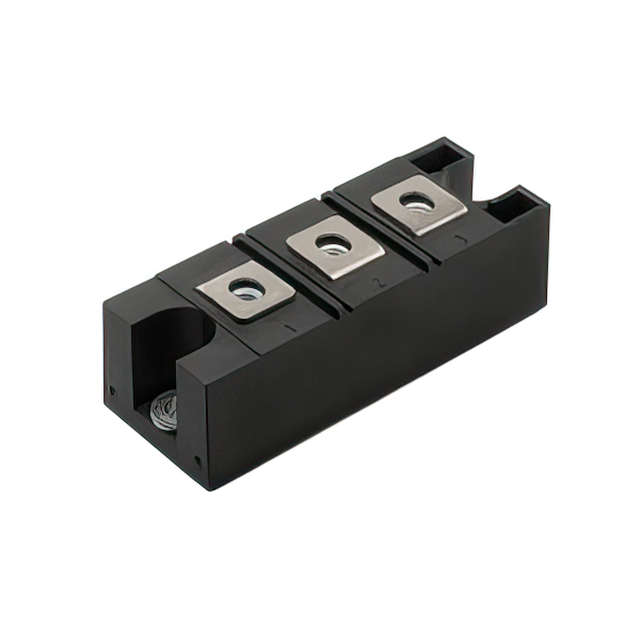

VS-VSKDF500/06PBF
DIODE MOD GP 600V 772A INTAPAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Series Connection 600 V 772A (DC) Chassis Mount Module
Additional Information
Series: FRED Pt® Gen 4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 104 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 772A (DC) |
| Supplier Device Package | INT-A-PAK |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.66 V @ 500 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Qualification | - |
