VS-CPH6006L-M3

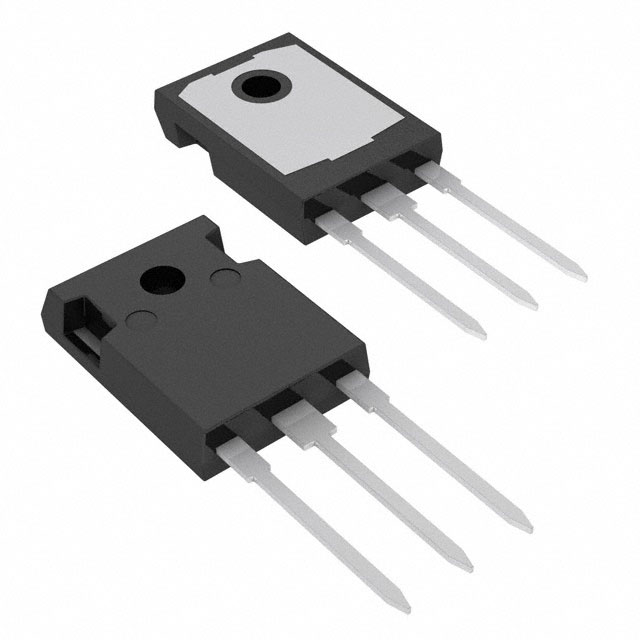

DIODE ARRAY GP 600V 15A TO247-3Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
The Vishay General Semiconductor - Diodes Division VS-CPH6006L-M3 is a FRED Pt® series diode array featuring a common cathode configuration. This component offers a 600 V reverse voltage rating and a 15 A average rectified current per diode. With a fast reverse recovery time (trr) of 25 ns, it is suitable for applications requiring efficient switching. The forward voltage (Vf) is rated at a maximum of 2.45 V at 15 A, and the reverse leakage current is a low 15 µA at 600 V. Operating across a junction temperature range of -65°C to 175°C, the VS-CPH6006L-M3 is housed in a TO-247-3 through-hole package. This diode array finds application in power supply and motor control systems.
Additional Information
Series: FRED Pt®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-247-3 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.45 V @ 15 A |
| Current - Reverse Leakage @ Vr | 15 µA @ 600 V |
