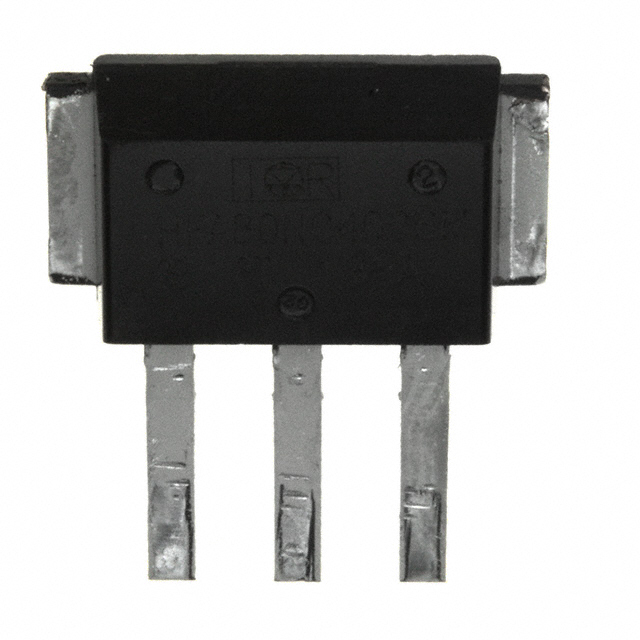

VS-85CNQ015ASMPBF
DIODE ARR SCHOTT 15V 40A D618SMManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-85CNQ015ASMPBF is a Schottky diode array featuring a common cathode configuration for two diodes. This through-hole component offers a maximum DC reverse voltage of 15V and a substantial average rectified current of 40A per diode. The forward voltage drop is minimized at 360mV at 40A, indicative of its Schottky technology. Reverse leakage is rated at 20mA at 15V. Operating across a junction temperature range of -55°C to 125°C, this device is housed in a D-61-8-SM package. Its fast recovery characteristics, with a speed specification of <= 500ns, make it suitable for applications in power supplies, automotive systems, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-61-8-SM |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Supplier Device Package | D-61-8-SM |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
| Voltage - Forward (Vf) (Max) @ If | 360 mV @ 40 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 15 V |
