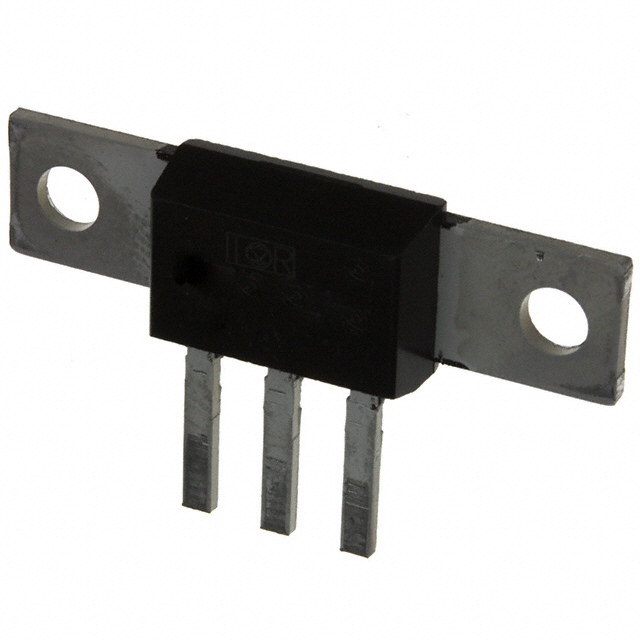

VS-81CNQ040APBF
DIODE MODULE SCHOTT 40V 40A D618Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-81CNQ040APBF is a Schottky diode module featuring a common cathode configuration with two diodes. This component offers a maximum DC reverse voltage (Vr) of 40 V and a continuous average rectified forward current (Io) of 40 A per diode. The forward voltage drop (Vf) is a maximum of 600 mV at 40 A. Reverse leakage current is specified at 5 mA at 40 V. Designed for robust performance, the module operates across a junction temperature range of -55°C to 175°C. The D-61-8 package facilitates chassis mounting for efficient thermal management. This diode array is suitable for applications in power supplies, motor control, and industrial automation where high current rectification and fast switching characteristics are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-61-8 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Supplier Device Package | D-61-8 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 40 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 40 V |
