V60200PG-E3/45

DIODE ARR SCHOT 200V 30A TO247AD

Manufacturer: Vishay General Semiconductor - Diodes Division

Categories: Diode Arrays

Quality Control: Learn More

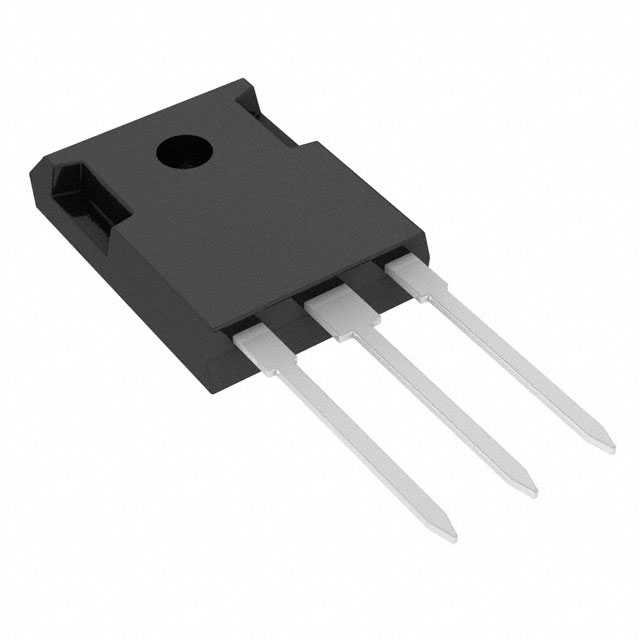

Vishay General Semiconductor - Diodes Division TMBS® V60200PG-E3-45 is a Schottky diode array featuring a common cathode configuration. This device offers a maximum DC reverse voltage of 200V and a significant average rectified current handling capability of 30A per diode. The forward voltage drop at 30A is a maximum of 1.48V. Reverse leakage current is rated at 200 µA at 200V. The component is housed in a TO-247AD (TO-3P) package, suitable for through-hole mounting. Operating junction temperatures range from -40°C to 150°C. This diode array finds application in power supply rectification, reverse polarity protection, and switching power applications within the automotive and industrial sectors.

Additional Information

Series: TMBS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tube
Technical Details:
PackagingTube
Package / CaseTO-3P-3, SC-65-3
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)30A
Supplier Device PackageTO-247AD (TO-3P)
Operating Temperature - Junction-40°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)200 V
Voltage - Forward (Vf) (Max) @ If1.48 V @ 30 A
Current - Reverse Leakage @ Vr200 µA @ 200 V
