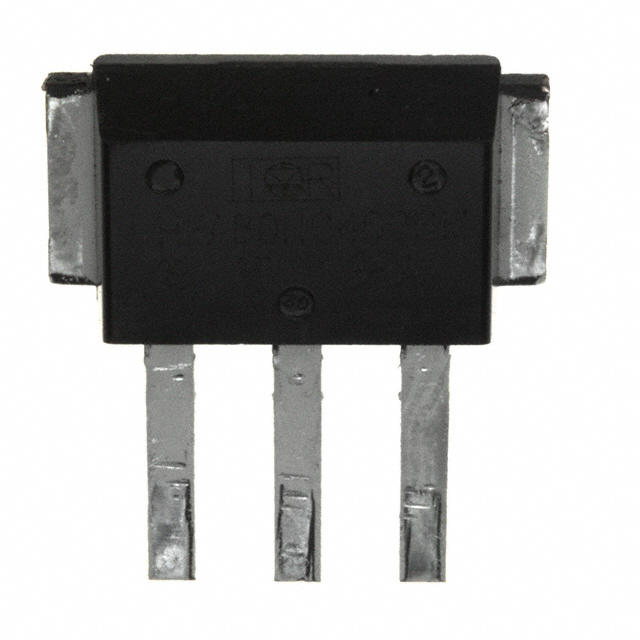

HFA80NC40CSM

DIODE ARRAY GP 400V 85A D618SM

Manufacturer: Vishay General Semiconductor - Diodes Division

Categories: Diode Arrays

Quality Control: Learn More

Vishay General Semiconductor - Diodes Division HFA80NC40CSM is a HEXFRED® diode array featuring a common cathode configuration. This through-hole component, packaged in a D-61-8-SM, offers a maximum DC reverse voltage of 400 V and a continuous average rectified current (Io) of 85 A per diode. The forward voltage drop (Vf) is 1.5 V at 80 A. With a fast recovery time (trr) of 100 ns, it is suitable for applications requiring efficient switching. The device operates across a junction temperature range of -55°C to 150°C and exhibits a low reverse leakage current of 3 µA at 400 V. This component is commonly utilized in power supply rectification, motor control, and industrial power conversion systems.

Additional Information

Series: HEXFRED®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseD-61-8-SM
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)100 ns
TechnologyStandard
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)85A (DC)
Supplier Device PackageD-61-8-SM
Operating Temperature - Junction-55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)400 V
Voltage - Forward (Vf) (Max) @ If1.5 V @ 80 A
Current - Reverse Leakage @ Vr3 µA @ 400 V
