HFA240NJ40D
DIODE MOD GP 400V 244A TO244ABManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More

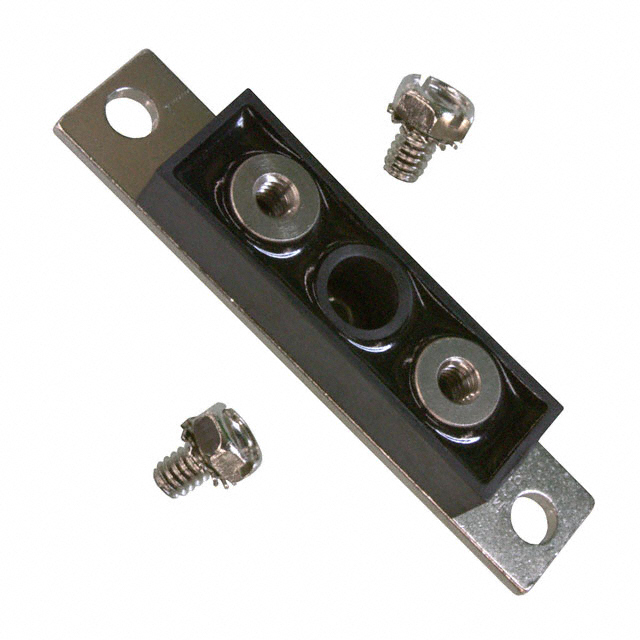

Vishay General Semiconductor - Diodes Division HEXFRED® HFA240NJ40D is a dual diode module featuring a 1 Pair Series Connection configuration within a TO-244AB isolated tab package. This device offers a maximum DC reverse voltage of 400V and a significant average rectified current handling capability of 244A per diode. The forward voltage drop is specified at 1.5V at 240A. With a fast reverse recovery time (trr) of 120ns, this component is suitable for applications requiring efficient switching. The chassis mount design facilitates robust thermal management, making it a viable option for power electronics in industries such as industrial motor control and power supplies. Reverse leakage current is rated at 9 µA @ 400 V.
Additional Information
Series: HEXFRED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-244AB Isolated Tab |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 120 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 244A (DC) |
| Supplier Device Package | TO-244AB (Isolated) |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 240 A |
| Current - Reverse Leakage @ Vr | 9 µA @ 400 V |
Request a Quote
