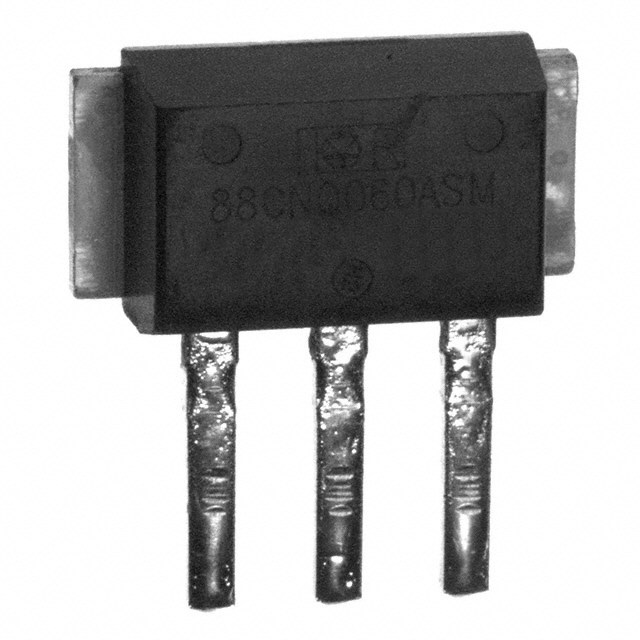

88CNQ060ASM
DIODE ARR SCHOTT 60V 40A D618SMManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division 88CNQ060ASM is a Schottky diode array featuring a common cathode configuration. This through-hole component is rated for a maximum DC reverse voltage of 60V and an average rectified current of 40A per diode. The forward voltage drop at 40A is a maximum of 580mV, with a reverse leakage of 640µA at 60V. Operating junction temperatures range from -55°C to 150°C. The D-61-8-SM package is supplied in bulk. This device is suitable for applications requiring efficient rectification and low forward voltage, commonly found in power supply units, voltage clamping circuits, and reverse polarity protection within industrial and automotive sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-61-8-SM |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Supplier Device Package | D-61-8-SM |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 40 A |
| Current - Reverse Leakage @ Vr | 640 µA @ 60 V |
Request a Quote
