80CNQ035A

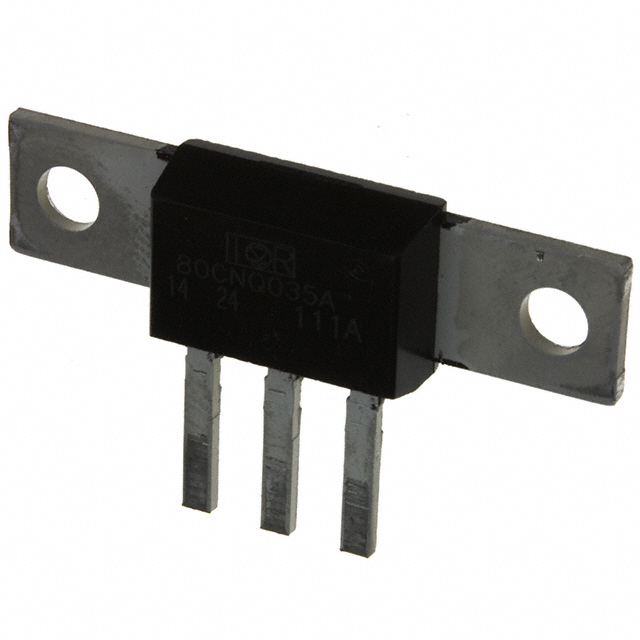

DIODE MODULE SCHOTT 35V 40A D618Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Diode Arrays
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division 80CNQ035A is a Schottky diode module featuring a common cathode configuration. This component offers a forward voltage of 520 mV at 40 A and a reverse voltage rating of 35 V. The average rectified current per diode is 40 A, with a reverse leakage of 5 mA at 35 V. Designed for robust performance, it operates across a junction temperature range of -55°C to 150°C. The module is housed in a D-61-8 package for chassis mounting, facilitating efficient thermal management. This diode array is suitable for applications in power supplies, motor control, and industrial automation where high current rectification and fast switching are critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-61-8 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Supplier Device Package | D-61-8 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 40 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 35 V |
