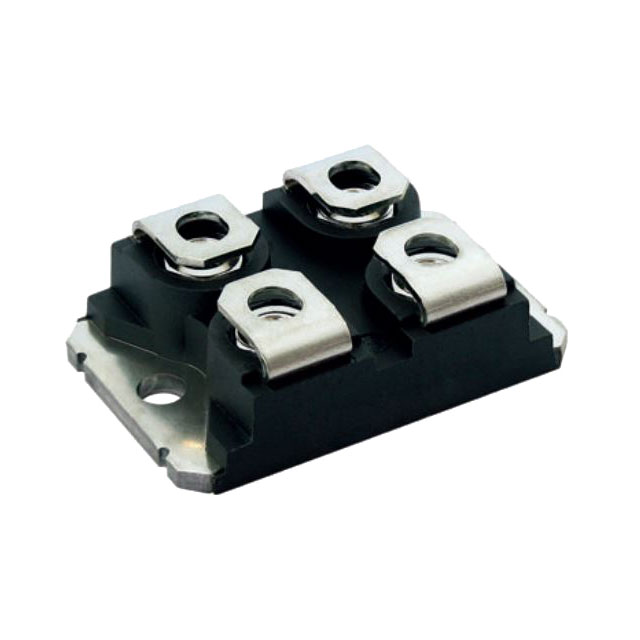

VS-SC50BA65
SOT-227 SILICON CARBIDE SINGLE PManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Silicon Carbide Schottky 650 V Chassis Mount SOT-227
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide Schottky |
| Supplier Device Package | SOT-227 |
| Grade | - |
| Voltage - Peak Reverse (Max) | 650 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.73 V @ 50 A |
| Current - Reverse Leakage @ Vr | 80 µA @ 650 V |
| Qualification | - |
