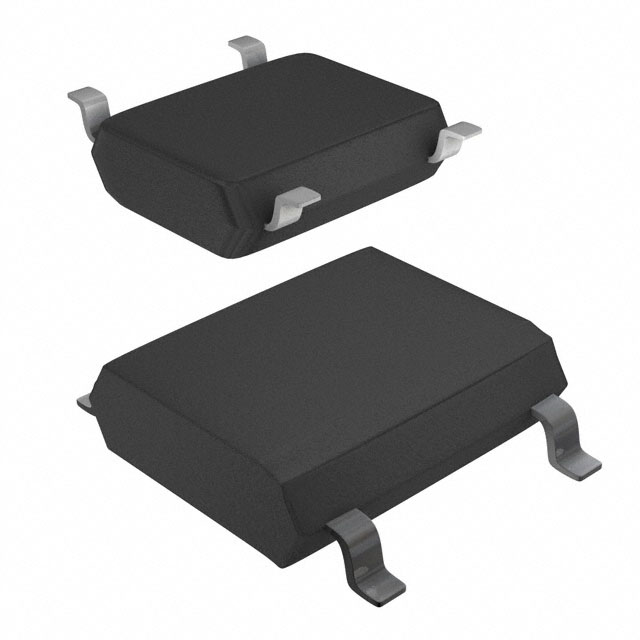

MBL110S-M3/I
BRIDGE RECT 1PHASE 1KV 1A 4SMDManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division MBL110S-M3-I is a single-phase bridge rectifier designed for robust power conversion applications. This 1A, 1kV component features a compact 4-SMD (Gull Wing) package for efficient surface mounting. Optimized for standard recovery technology, it exhibits a low forward voltage drop of 950 mV at 400 mA and a minimal reverse leakage current of 5 µA at its maximum reverse voltage of 1000 V. Operating across a wide temperature range from -55°C to 150°C (TJ), this device is suitable for demanding environments in industrial automation, consumer electronics, and power supply units. The MBL110S-M3-I is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SMD |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
