MB6S-E3/45
BRIDGE RECT 1P 600V TO269AAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More

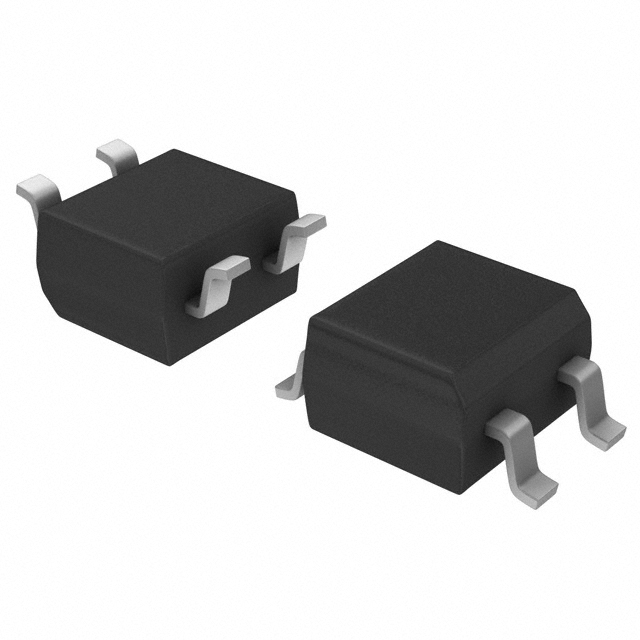

Bridge Rectifier Single Phase Standard 600 V Surface Mount TO-269AA (MBS)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-269AA, 4-BESOP |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | TO-269AA (MBS) |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
