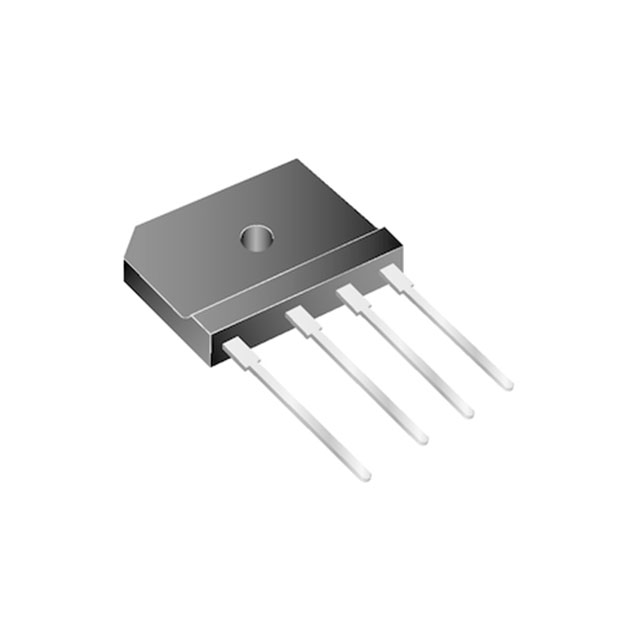

LVE2560-M3R/P
DIODE BRIDGEManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division LVE2560-M3R-P is a single-phase, standard bridge rectifier designed for robust power applications. This through-hole component offers a peak reverse voltage rating of 600 V and an average rectified current handling capability of 25 A. Featuring a low forward voltage drop of 920 mV at 12.5 A and a minimal reverse leakage of 10 µA at 600 V, it ensures efficient power conversion. The GSIB-5S package provides reliable mounting and thermal performance across an operating temperature range of -55°C to 150°C. This component is commonly utilized in industrial power supplies, motor control, and general rectification circuits. Supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SIP, GSIB-5S |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GSIB-5S |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 12.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
