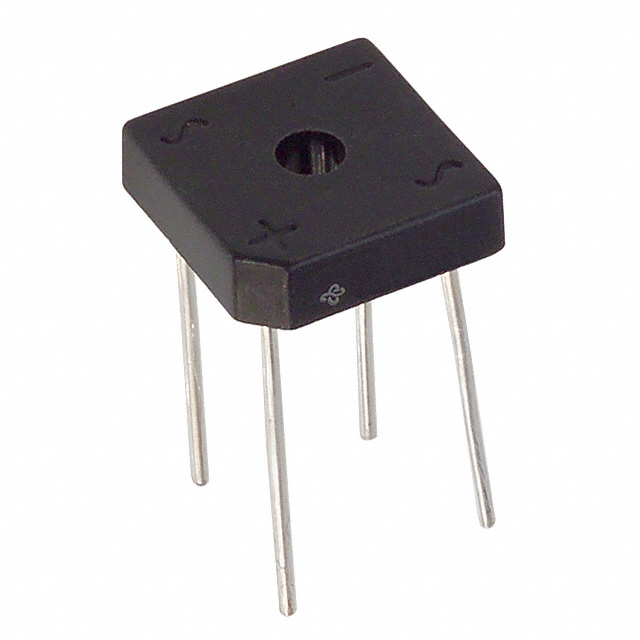

GBPC608/1
BRIDGE RECT 1PHASE 800V 3A GBPC6Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division GBPC608-1 is a single-phase bridge rectifier designed for robust power applications. This through-hole component offers a peak reverse voltage of 800V with a maximum forward voltage of 1V at 3A. Its average rectified output current (Io) is rated at 3A, with a low reverse leakage of 5µA at 800V. The GBPC608-1 utilizes standard diode technology and is housed in a 4-square, GBPC-6 package, suitable for bulk packaging. Operating across a wide temperature range of -55°C to 150°C (TJ), this rectifier is commonly employed in power supplies, industrial control systems, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, GBPC-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GBPC6 |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
