G2SB80-M3/45
DIODE BRIDGEManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Bridge Rectifiers
Quality Control: Learn More

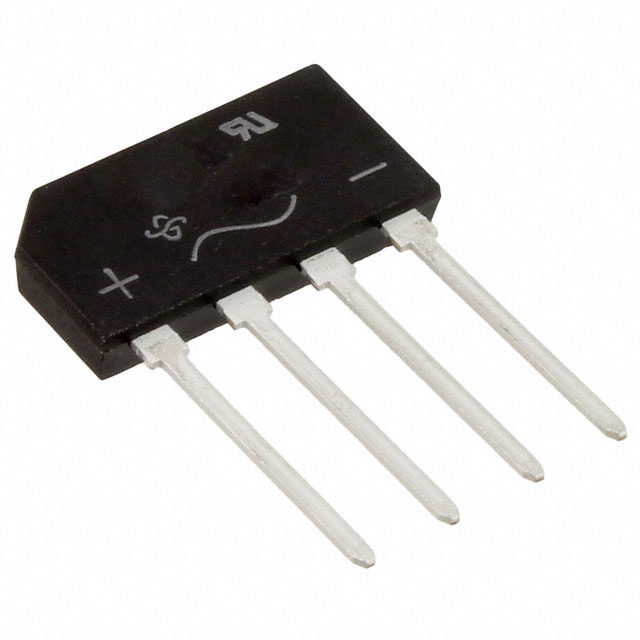

Vishay General Semiconductor - Diodes Division GBL bridge rectifier, part number G2SB80-M3-45. This single-phase standard bridge rectifier offers a repetitive peak reverse voltage of 800 V and an average forward rectified current of 1.5 A. Featuring a low forward voltage drop of 1 V at 750 mA and a reverse leakage current of 5 µA at 800 V, it is designed for robust performance across a wide operating temperature range of -55°C to 150°C. The component utilizes through-hole mounting and is supplied in the GBL package. This rectifier is commonly employed in power supply units, industrial control systems, and consumer electronics applications requiring reliable AC to DC conversion. Packaged on tape and reel (TR) for efficient assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SIP, GBL |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GBL |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 750 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
