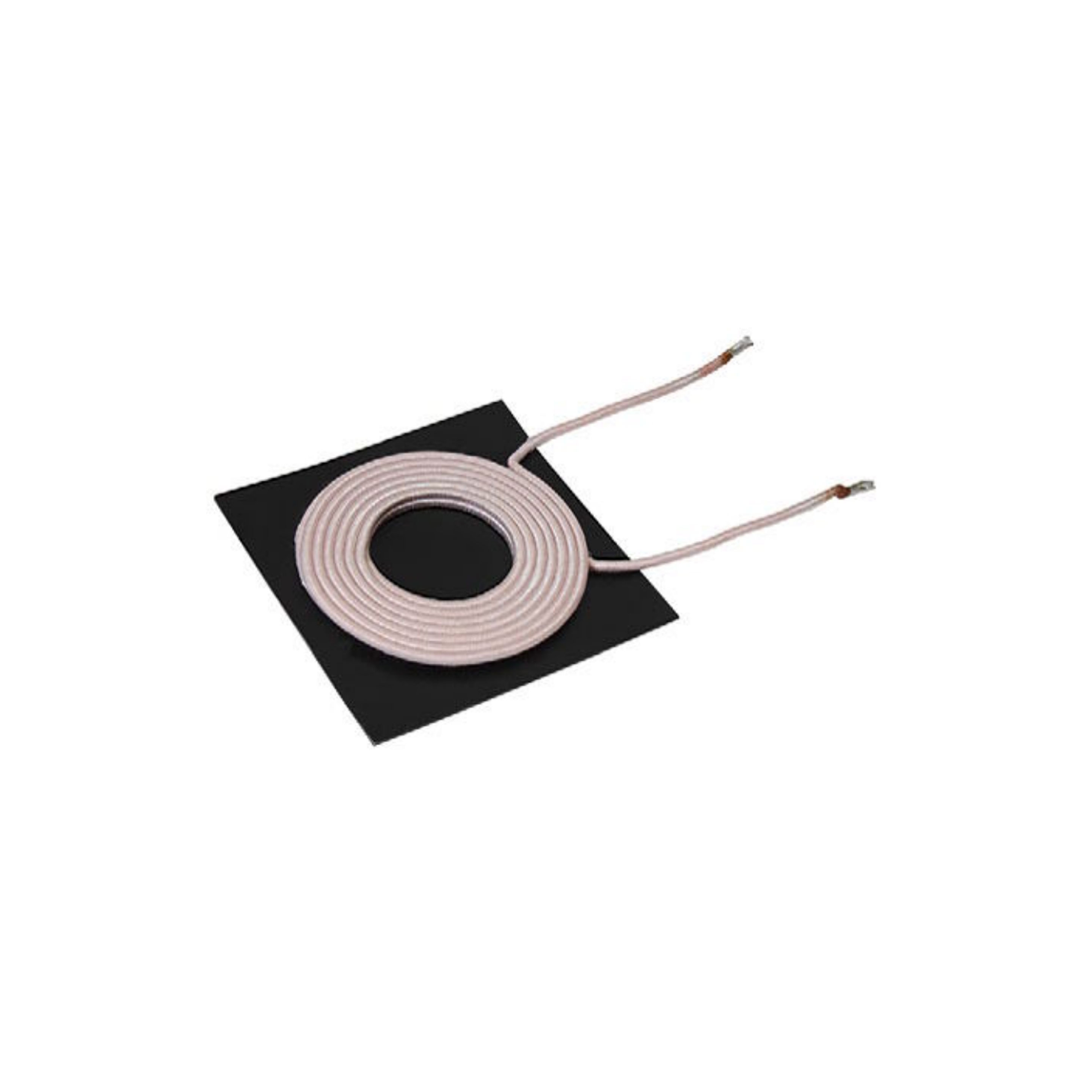

IWTX5050DEEB100KF1
WIRELESS CHARGING TRANSMIT COILManufacturer: Vishay Dale
Categories: Wireless Charging Coils
Quality Control: Learn More
1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 29.7mOhm Max
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tray |
| Inductance | 10µH |
| Size / Dimension | 1.97"" Dia x 0.18"" H (50.0mm x 4.5mm) |
| Current Rating (Amps) | 9A |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 29.7mOhm Max |
| Q @ Freq | 200 @ 100kHz |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | - |
Request a Quote
