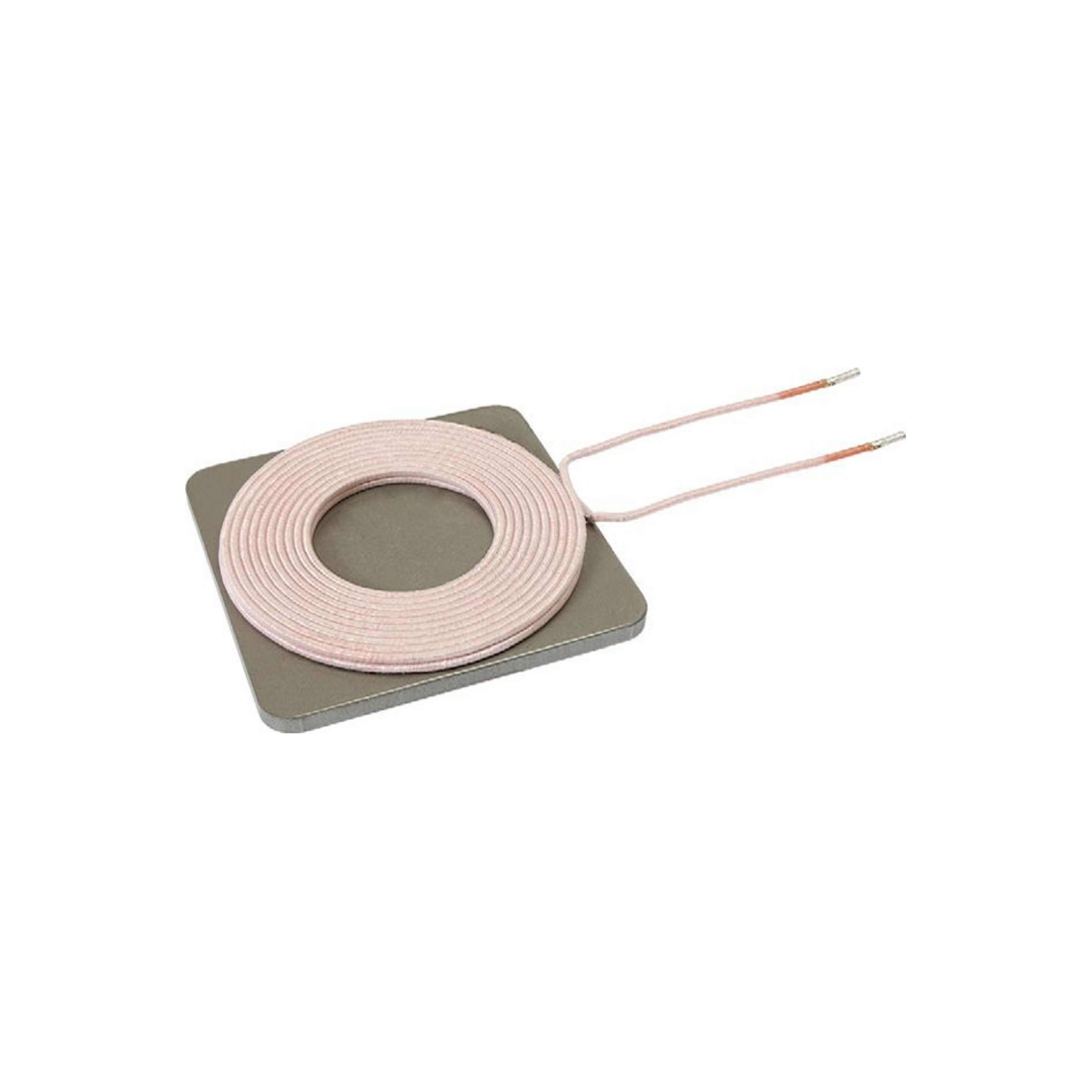

IWTX4646DCEB240JR1
WIRELESS CHARGE TX SQUARE 24UH 6Manufacturer: Vishay Dale
Categories: Wireless Charging Coils
Quality Control: Learn More
1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 75mOhm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tray |
| Inductance | 24µH |
| Size / Dimension | 1.81"" L x 1.81"" W x 0.21"" H (46.0mm x 46.0mm x 5.3mm) |
| Current Rating (Amps) | 6A |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Operating Temperature | -40°C ~ 105°C |
| DC Resistance (DCR) | 75mOhm |
| Q @ Freq | 185 @ 200kHz |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | 20A |
Request a Quote
