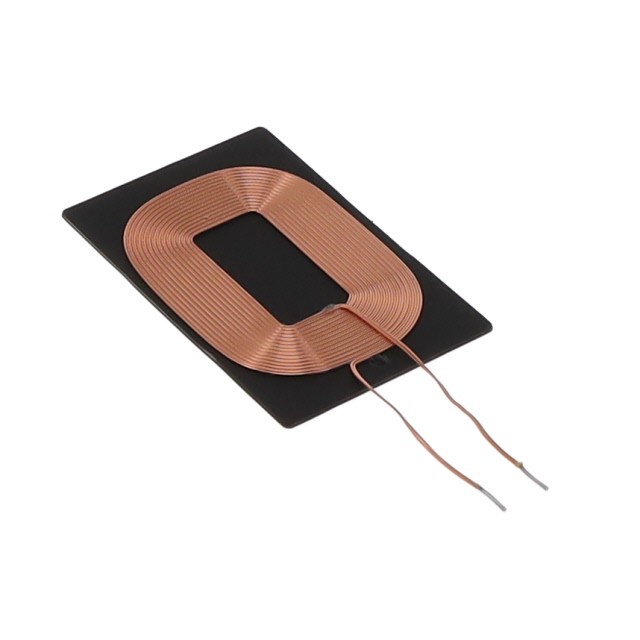

IWAS4832AEEB120KF1
WIRELESS CHARGING RECEIVE COILManufacturer: Vishay Dale
Categories: Wireless Charging Coils
Quality Control: Learn More
1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 200mOhm Max
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tray |
| Inductance | 12µH |
| Size / Dimension | 1.89"" L x 1.26"" W x 0.04"" H (48.0mm x 32.0mm x 1.0mm) |
| Current Rating (Amps) | 3A |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 33 @ 100kHz |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | - |
Request a Quote
