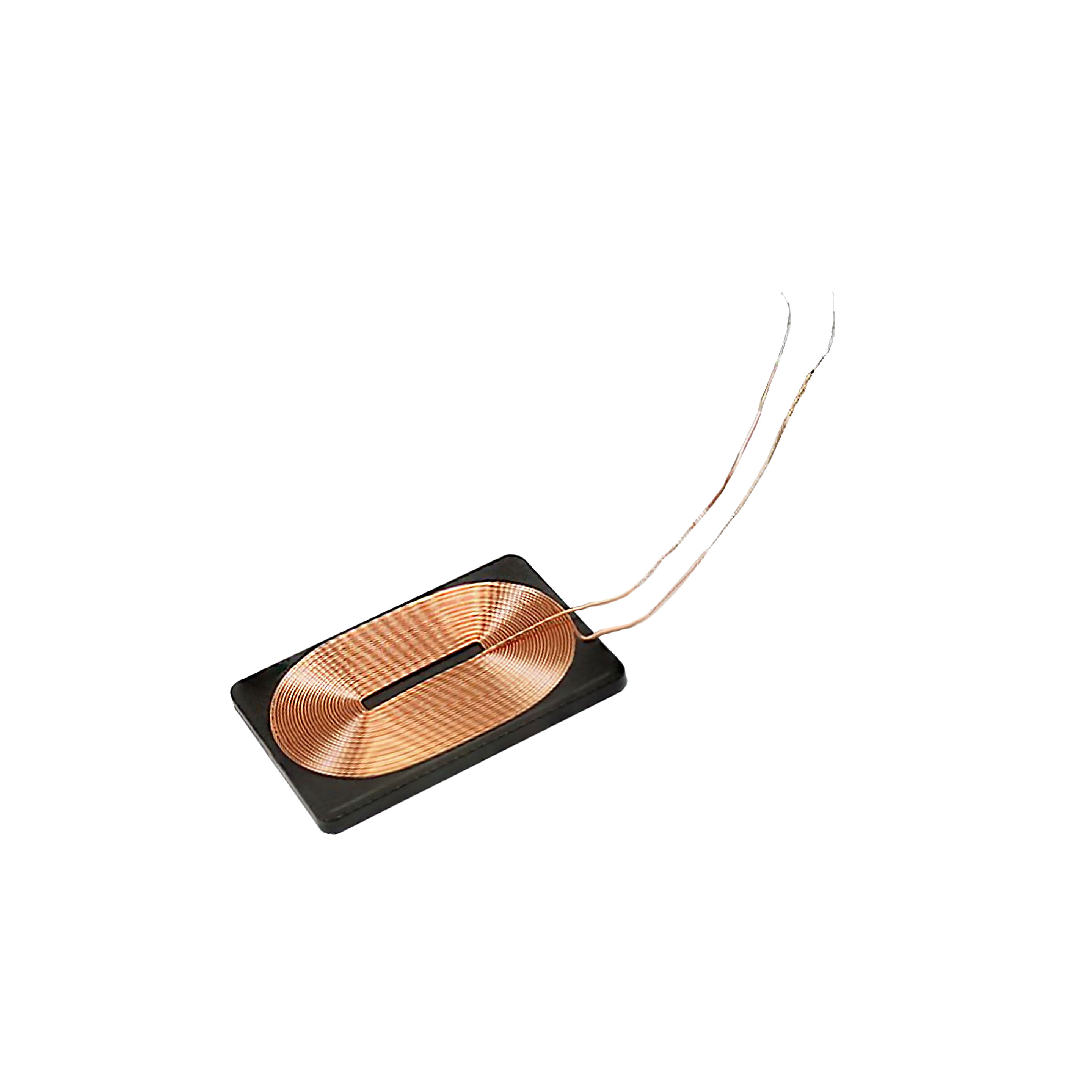

IWAS3222CZEB190JR1
WIRELESS CHARGE RX RECT 19.6UH 1Manufacturer: Vishay Dale
Categories: Wireless Charging Coils
Quality Control: Learn More
1 Coil, 1 Layer 19.6µH Wireless Charging Coil Receiver 357mOhm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tray |
| Inductance | 19.6µH |
| Size / Dimension | 1.26"" L x 0.87"" W x 0.12"" H (32.0mm x 22.0mm x 3.0mm) |
| Current Rating (Amps) | 1.2A |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -40°C ~ 105°C |
| DC Resistance (DCR) | 357mOhm |
| Q @ Freq | 28.5 @ 200kHz |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | 2.4A |
Request a Quote
