WSMS5515L5000JK
RES SHUNT 0.0005 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More

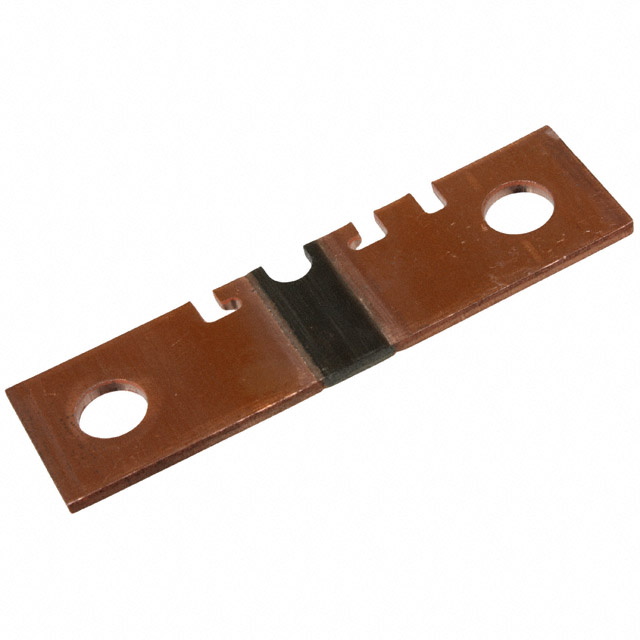

Vishay Dale WSMS5515L5000JK, a Power Metal Strip® component, is a precision 500 µOhms ±5% shunt resistor with a 3W power rating. Engineered with a metal element composition, this device offers a temperature coefficient of ±175ppm/°C, ensuring stable performance across its operating temperature range of -65°C to 170°C. The design features a Shunt Fixture mounting type with a 40mm pitch, making it suitable for applications demanding accurate current sensing. This component is frequently utilized in power meters and other power-related instrumentation where reliable current measurement is critical. The WSMS5515L5000JK is supplied in bulk packaging.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±175ppm/°C |
| Mounting Type | Shunt Fixture, 40mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 500 µOhms |
