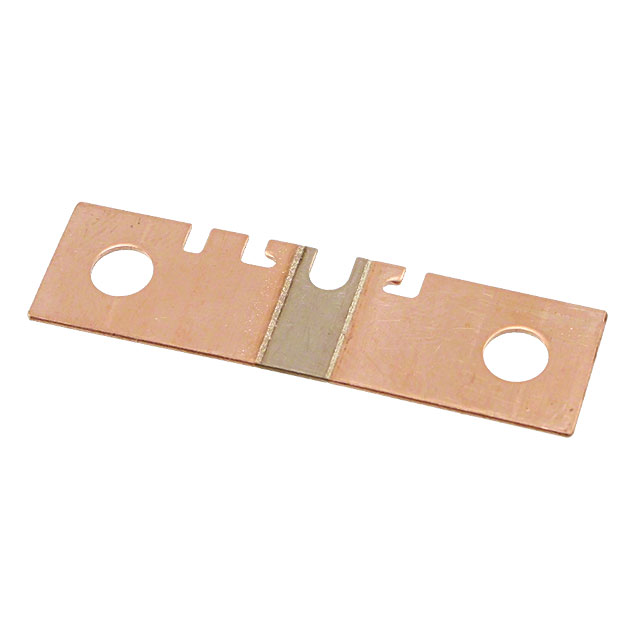

WSMS5515L3000JK
RES SHUNT 0.0003 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More
Vishay Dale Power Metal Strip® WSMS5515L3000JK is a 300 µOhm, 3W shunt resistor with a ±5% tolerance. This component utilizes a metal element composition and features a low temperature coefficient of ±175ppm/°C across its -65°C to 170°C operating temperature range. Designed for demanding applications, it is built with a shunt fixture mounting type and a 40mm pitch. This Vishay Dale Power Metal Strip® resistor is specifically engineered for use in power meters and other power-sensitive applications where accurate current sensing is critical. The bulk packaging facilitates efficient integration into high-volume manufacturing processes.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±175ppm/°C |
| Mounting Type | Shunt Fixture, 40mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 300 µOhms |
Request a Quote
