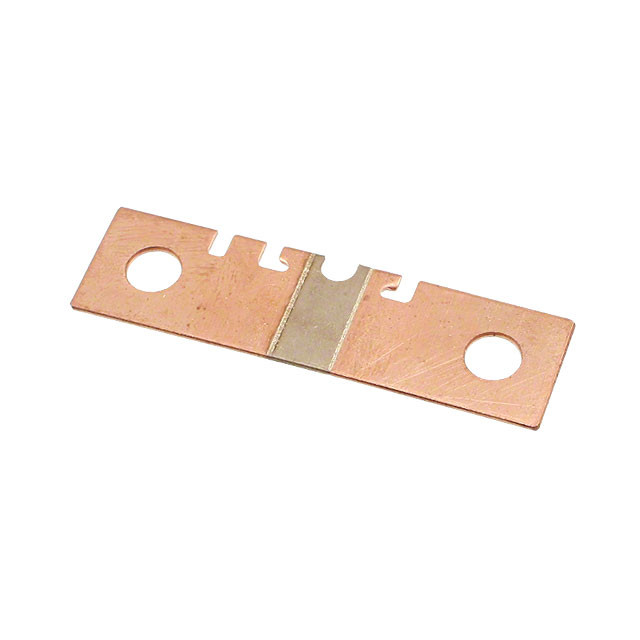

WSMS5515L2500JK
RES SHUNT 0.00025 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More
Vishay Dale Power Metal Strip® WSMS5515L2500JK is a specialized meter shunt resistor. This component features a low resistance value of 250 µOhms with a ±5% tolerance and a power rating of 3W. Constructed with a metal element, it offers a temperature coefficient of ±225ppm/°C and an operating temperature range of -65°C to 170°C. The WSMS5515L2500JK is designed for shunt fixture mounting with a 40mm pitch. Its characteristics make it suitable for applications such as power meters. This component is supplied in bulk packaging.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±225ppm/°C |
| Mounting Type | Shunt Fixture, 40mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 250 µOhms |
Request a Quote
