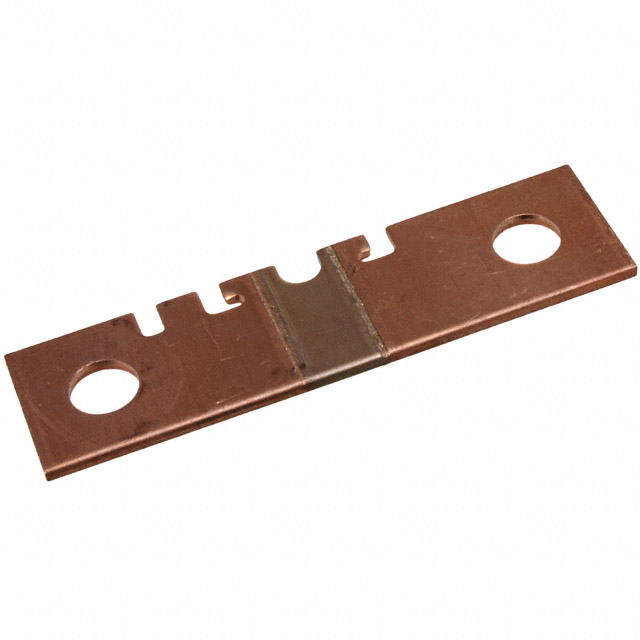

WSMS5515L1600JK
RES SHUNT 0.00016 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More
Vishay Dale Power Metal Strip® WSMS5515L1600JK is a high-precision shunt resistor designed for demanding applications. This metal element component offers a low resistance value of 160 µOhms with a tight ±5% tolerance. Engineered for power metering and specialized sensing, it boasts a 3W power rating and a low temperature coefficient of ±225ppm/°C, ensuring stable performance across its -65°C to 170°C operating temperature range. The WSMS5515L1600JK features a robust shunt fixture mounting with a 40mm pitch, facilitating reliable integration into power electronics systems.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±225ppm/°C |
| Mounting Type | Shunt Fixture, 40mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 160 µOhms |
Request a Quote
