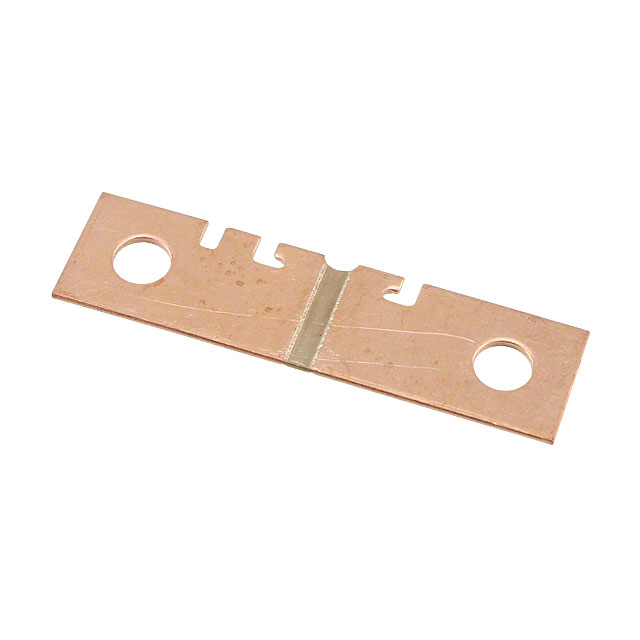

WSMS5515L1000JK
RES SHUNT 0.0001 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More
Vishay Dale Power Metal Strip® WSMS5515L1000JK is a 3W shunt resistor with a low resistance value of 100 µOhms and a tolerance of ±5%. This metal element resistor features a temperature coefficient of ±325ppm/°C, making it suitable for applications requiring stable performance across a range of operating temperatures from -65°C to 170°C. Designed for precise current sensing, it is utilized in power meters and similar demanding applications. The component is mounted via a shunt fixture with a 40mm pitch and is supplied in bulk packaging.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±325ppm/°C |
| Mounting Type | Shunt Fixture, 40mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 100 µOhms |
