WSMS2908L1000JK
RES SHUNT 0.0001 OHM 5% 3WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More

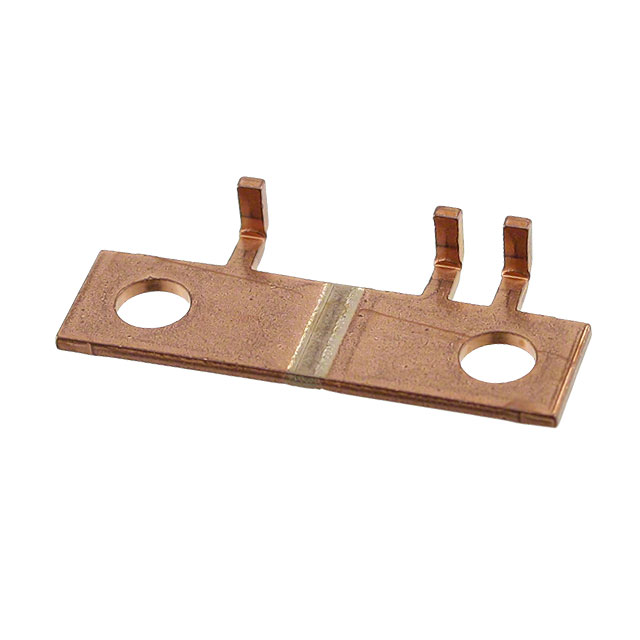

Vishay Dale Power Metal Strip® WSMS2908L1000JK is a 100 µOhms ±5% power resistor with a 3W continuous power rating. This shunt resistor utilizes a metal element composition and is designed for high-accuracy current sensing applications. Featuring a low resistance value, it is ideal for current measurement in power meters and other demanding power electronics systems. The WSMS2908L1000JK exhibits a temperature coefficient of ±1100ppm/°C and operates across a temperature range of -65°C to 170°C. The component is supplied in bulk packaging and mounts via a shunt fixture with a 20mm pitch.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 3W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±1100ppm/°C |
| Mounting Type | Shunt Fixture, 20mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Meter |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Power Meters |
| Resistance | 100 µOhms |
