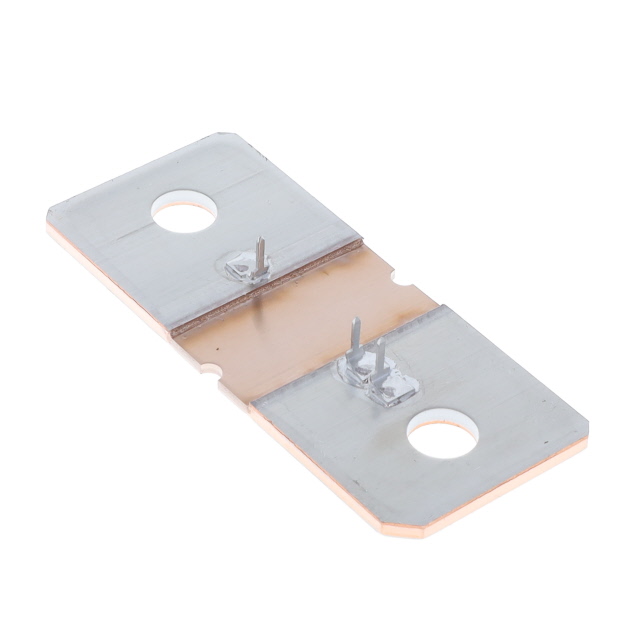

WSBS8536L1000JK80
100 UOHMS 5% 50W SHUNT, BATTERYManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More

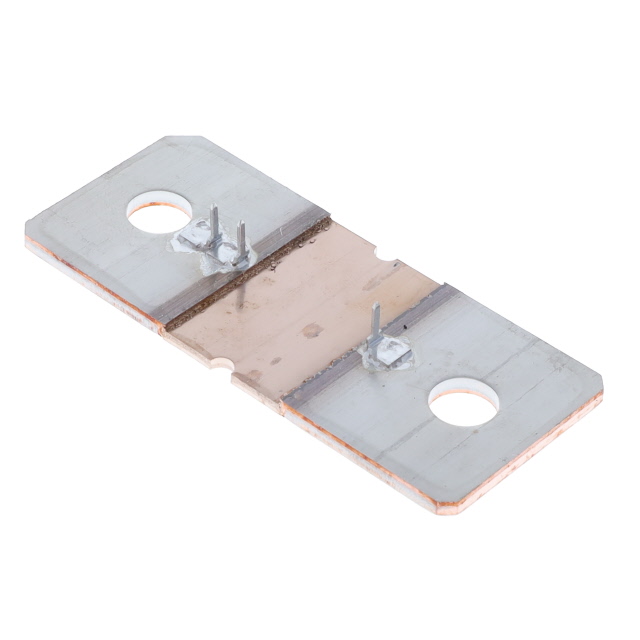

Vishay Dale WSBS8536 Series Metal Element Shunt Resistor, Part Number WSBS8536L1000JK80. This high-power resistor features a 100 µOhm resistance with a ±5% tolerance. Designed for demanding applications, it offers a 50W power rating and a low temperature coefficient of ±20ppm/°C. The component utilizes a Shunt Fixture mounting type with a 60mm pitch, ensuring robust thermal management. Its metal element construction provides stability across an operating temperature range of -65°C to 170°C. This component is well-suited for battery monitoring and current sensing in electric vehicle power management systems, industrial power supplies, and renewable energy systems. Available in Bulk packaging.
Additional Information
Series: WSBS8536RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 50W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±20ppm/°C |
| Mounting Type | Shunt Fixture, 60mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Battery |
| Operating Temperature | -65°C ~ 170°C |
| Applications | - |
| Resistance | 100 µOhms |
Request a Quote
Clients Also Buy

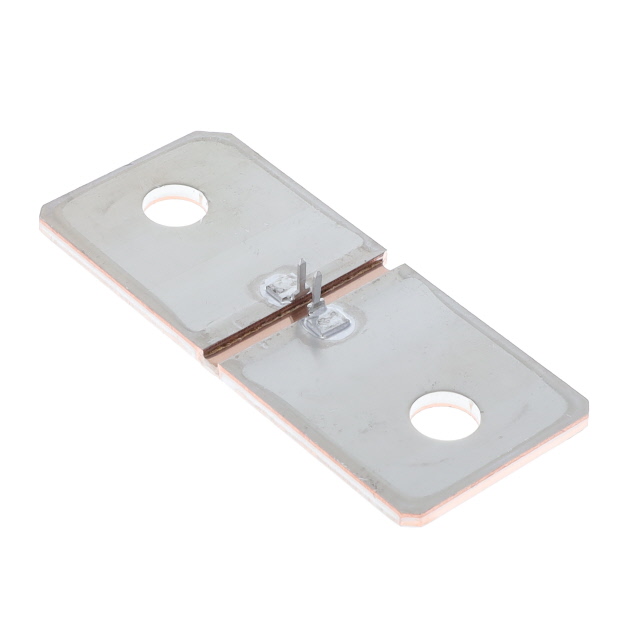

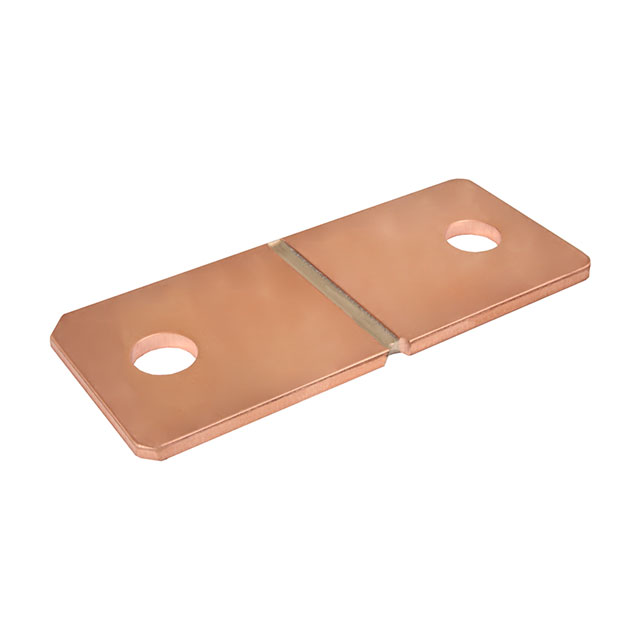

WSBS8536L0250JK60
25 UOHMS 5% 50W SHUNT, BATTERY S

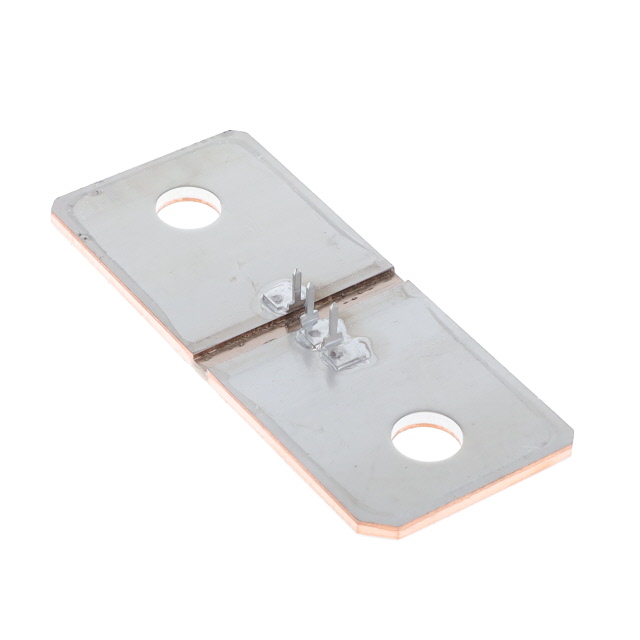

WSBS8536L0250JK80
