WSBS5216L1000JT
RESISTOR SHUNT 100 UOHM 5% 12WManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More

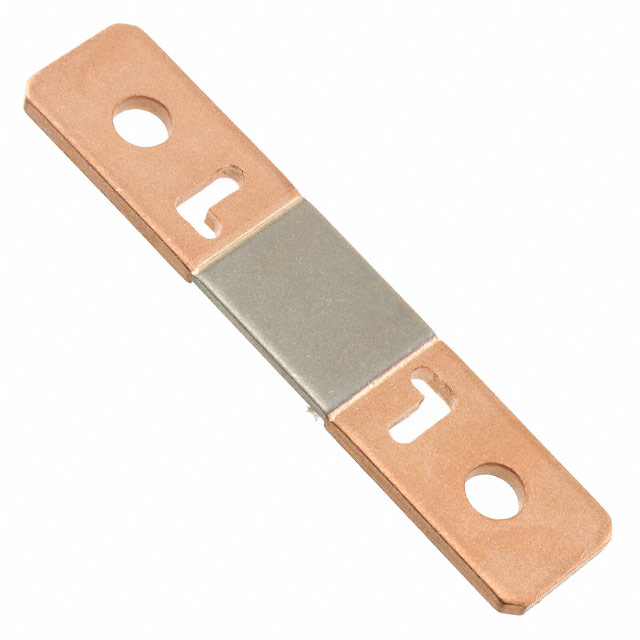

Vishay Dale WSBS5216L1000JT is a 100 µOhm, 12W Power Metal Strip® shunt resistor with a 5% tolerance. This metal element component features a low temperature coefficient of ±150ppm/°C and is constructed for high-power applications. Designed with a shunt fixture and a 60mm pitch mounting, it operates within a temperature range of -65°C to 170°C. The WSBS5216L1000JT is suitable for demanding environments, including automotive applications compliant with AEC-Q200. This device is presented in tray packaging.
Additional Information
Series: Power Metal Strip®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 12W |
| Tolerance | ±5% |
| Packaging | Tray |
| Temperature Coefficient | ±150ppm/°C |
| Mounting Type | Shunt Fixture, 60mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Battery |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Automotive AEC-Q200 |
| Resistance | 100 µOhms |
