WSBR8518L1000JKB4
100UOHMS 5% 36W SHUNT, BATTERY SManufacturer: Vishay Dale
Categories: Specialized Resistors
Quality Control: Learn More

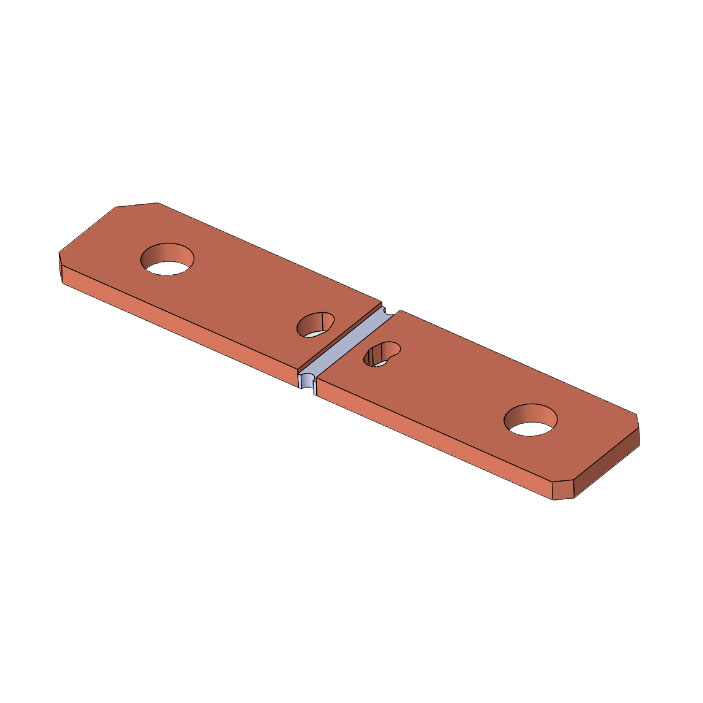

Vishay Dale WSBR series WSBR8518L1000JKB4 is a 100 µOhm, 5% tolerance metal element shunt resistor. This 36W rated component features a ±10ppm/°C temperature coefficient and is designed with a 60mm pitch shunt fixture mounting. It is optimized for battery applications and is AEC-Q200 qualified, making it suitable for demanding automotive environments. The WSBR8518L1000JKB4 operates across a broad temperature range of -65°C to 170°C.
Additional Information
Series: WSBRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 36W |
| Tolerance | ±5% |
| Packaging | Bulk |
| Temperature Coefficient | ±10ppm/°C |
| Mounting Type | Shunt Fixture, 60mm Pitch |
| Composition | Metal Element |
| Type | Shunt, Battery |
| Operating Temperature | -65°C ~ 170°C |
| Applications | Automotive AEC-Q200 |
| Resistance | 100 µOhms |
