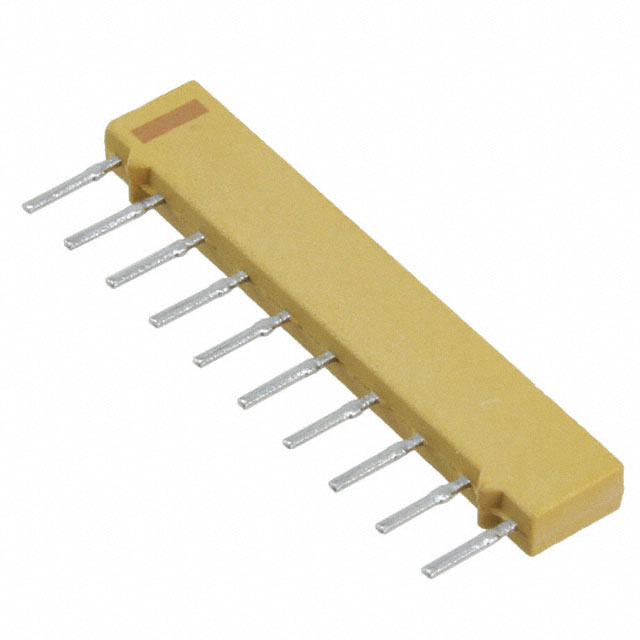

M8340109K2202GCD03
RES ARRAY 9 RES 22K OHM 10SIPManufacturer: Vishay Dale
Categories: Resistor Networks, Arrays
Quality Control: Learn More
22k Ohm ±2% 120mW Power Per Element Bussed 9 Resistor Network/Array ±100ppm/°C 10-SIP
Additional Information
Series: RZ090RoHS Status: RoHS non-compliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 22k |
| Tolerance | ±2% |
| Packaging | Tube |
| Power Per Element | 120mW |
| Circuit Type | Bussed |
| Number of Pins | 10 |
| Package / Case | 10-SIP |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.983"" L x 0.098"" W (24.97mm x 2.49mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Supplier Device Package | 10-SIP |
| Height - Seated (Max) | 0.195"" (4.95mm) |
| Grade | Military |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Resistors | 9 |
| Qualification | MIL-PRF-83401/09 |
