M8340105K1002FGD03

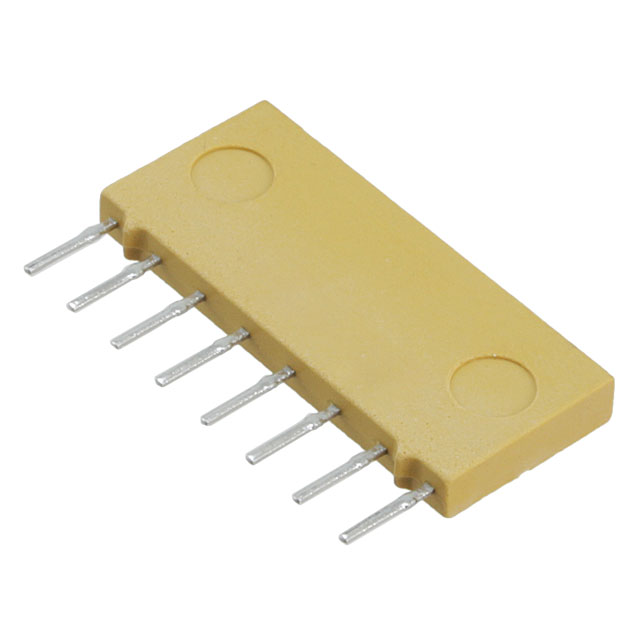

RES ARRAY 4 RES 10K OHM 8SIPManufacturer: Vishay Dale
Categories: Resistor Networks, Arrays
Quality Control: Learn More
10k Ohm ±1% 200mW Power Per Element Isolated 4 Resistor Network/Array ±100ppm/°C 8-SIP
Additional Information
Series: RZ050RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±1% |
| Packaging | Tube |
| Power Per Element | 200mW |
| Circuit Type | Isolated |
| Number of Pins | 8 |
| Package / Case | 8-SIP |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.783"" L x 0.098"" W (19.89mm x 2.49mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Supplier Device Package | 8-SIP |
| Height - Seated (Max) | 0.350"" (8.89mm) |
| Grade | Military |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Resistors | 4 |
| Qualification | MIL-PRF-83401/05 |
