IHV15BZ500
FIXED IND 500UH 15A 50 MOHM THManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
500 µH Unshielded Inductor 15 A 50mOhm Max Radial, Horizontal Cylinder
Additional Information
Series: IHVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | - |
| Packaging | - |
| Package / Case | Radial, Horizontal Cylinder |
| Size / Dimension | 1.450"" Dia x 2.450"" L (36.83mm x 62.23mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | - |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 800kHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Iron |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Inductance | 500 µH |
| Current Rating (Amps) | 15 A |
Request a Quote
Clients Also Buy

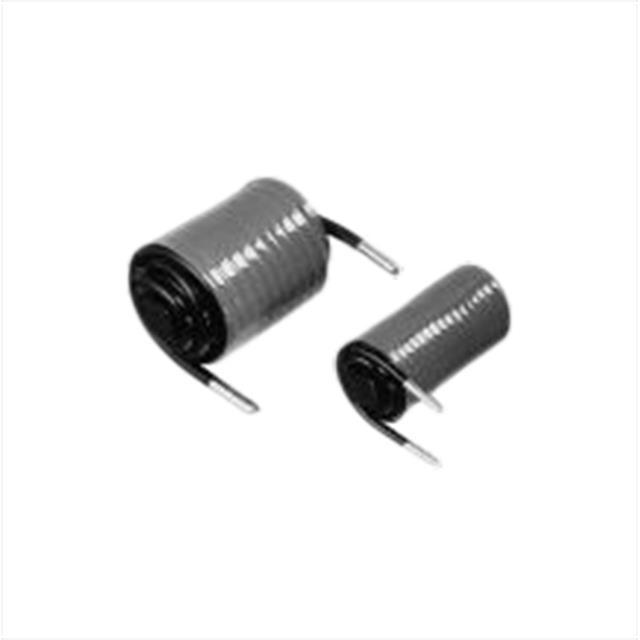

IHV20EB200
