IHTH1125KZEBR47M5A
FIXED IND 470NH 125A 0.3 MOHM THManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
470 nH Shielded Inductor 125 A 0.3mOhm Max Radial, Vertical Cylinder
Additional Information
Series: IHTH-1125KZ-5ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 1.125"" Dia (28.58mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | - |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 0.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 57.25MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 112A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.433"" (11.00mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 125 A |
Request a Quote
Clients Also Buy

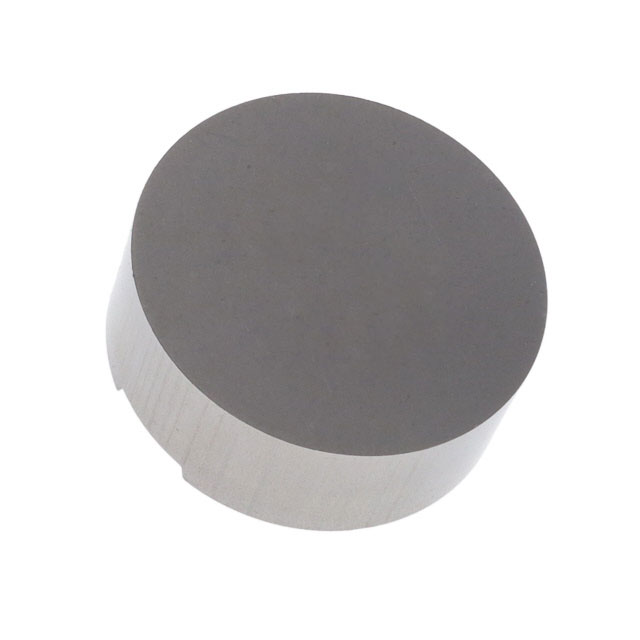

IHTH1125KZEB100M5A
