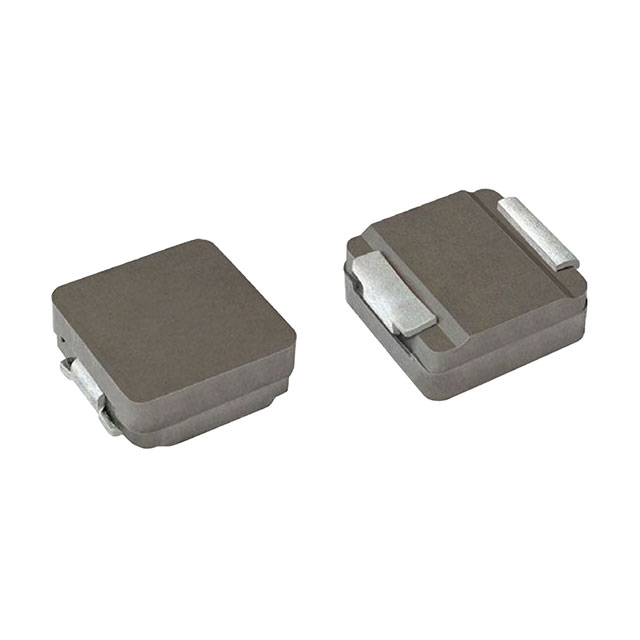

IHSR6767GZERR22M5A
IHSR-6767GZ-5A .22 20% ER E3Manufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
220 nH Shielded Inductor 141 A 0.24mOhm Nonstandard
Additional Information
Series: IHSR-6767GZ-5ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.709"" L x 0.675"" W (18.00mm x 17.15mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | - |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 0.24mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 155A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.276"" (7.00mm) |
| Inductance | 220 nH |
| Current Rating (Amps) | 141 A |
