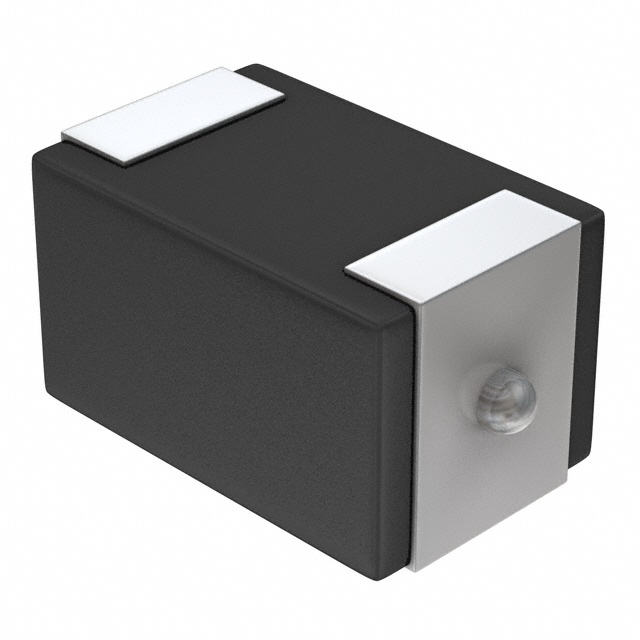

IHSM3825ER470L
FIXED IND 47UH 740MA 646MOHM SMDManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
47 µH Unshielded Inductor 740 mA 646mOhm Max Nonstandard
Additional Information
Series: IHSM-3825RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±15% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.440"" L x 0.250"" W (11.18mm x 6.35mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | - |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 646mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 680mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.225"" (5.72mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 740 mA |
