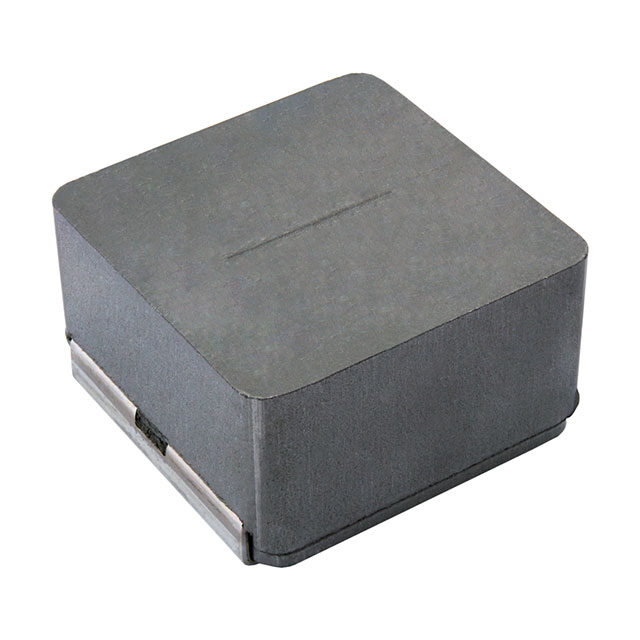

IHLP8787MZERR47M51
FIXED IND 470NH 80A 670U OHM SMDManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
470 nH Shielded Molded Inductor 80 A 670µOhm Max Nonstandard
Additional Information
Series: IHLP-8787MZ-51RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.885"" L x 0.866"" W (22.48mm x 22.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 670µOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 47.5MHz |
| Ratings | - |
| Current - Saturation (Isat) | 100A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.512"" (13.00mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 80 A |
