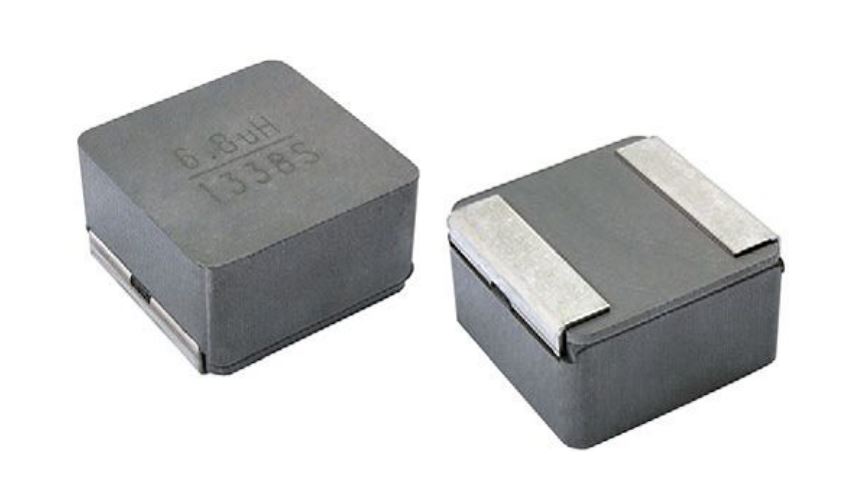

IHLP8787MZER100M5A
FIXED IND 10UH 28A 4.14 MOHM SMDManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
10 µH Shielded Molded Inductor 28 A 4.14mOhm Max Nonstandard
Additional Information
Series: IHLP-8787MZ-5ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.885"" L x 0.866"" W (22.48mm x 22.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 4.14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.04MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 28A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.512"" (13.00mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 28 A |
