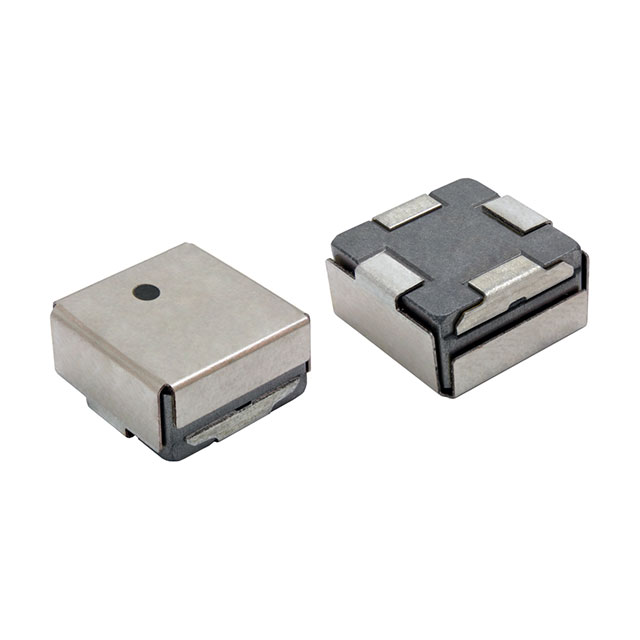

IHLE5050FHER2R2M5A
IHLE-5050FH-5A 2.2 20% ER E3Manufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
2.2 µH Shielded Inductor 25.5 A 3.67mOhm Max Nonstandard
Additional Information
Series: IHLE-5050FH-5ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550"" L x 0.535"" W (13.97mm x 13.59mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | - |
| Operating Temperature | -55°C ~ 155°C |
| DC Resistance (DCR) | 3.67mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 23.3MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 21.5A |
| Material - Core | Metal Composite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.268"" (6.80mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 25.5 A |
Request a Quote
