IHDM1008BCEV6R8M20
HIGH CURRENT THROUGH-HOLE INDUCTManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
6.8 µH Unshielded Wirewound Inductor 37 A 2mOhm Max Vertical, 2 PC Pin
Additional Information
Series: IHDM-1008BC-x0RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tray |
| Package / Case | Vertical, 2 PC Pin |
| Size / Dimension | 1.005"" L x 0.816"" W (25.53mm x 20.73mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 180°C |
| DC Resistance (DCR) | 2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Current - Saturation (Isat) | 110A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | Vertical, 2 PC Pin |
| Height - Seated (Max) | 0.896"" (22.75mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 37 A |
Request a Quote
Clients Also Buy

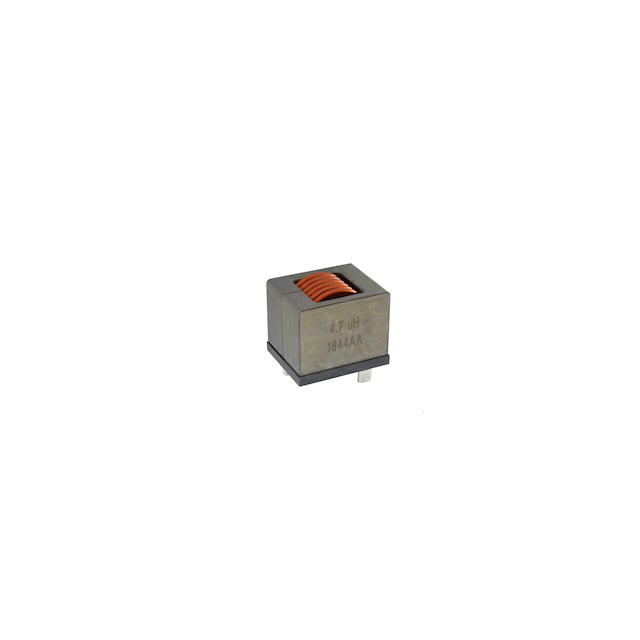

IHDM1008BCEV100M30
FIXED IND 10UH 30A 2 MOHM TH
IHDM1008BCEV1R2M30
FIXED IND 1.2UH 80A 0.3 MOHM TH

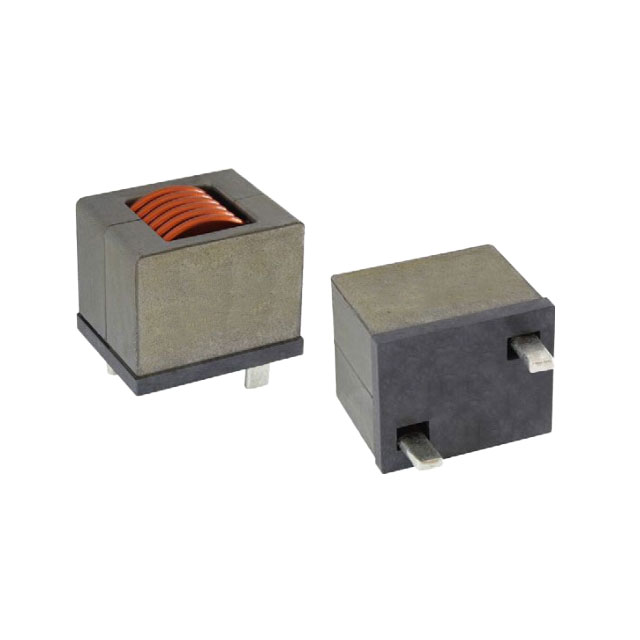

IHDM1008BCEV1R3M20
