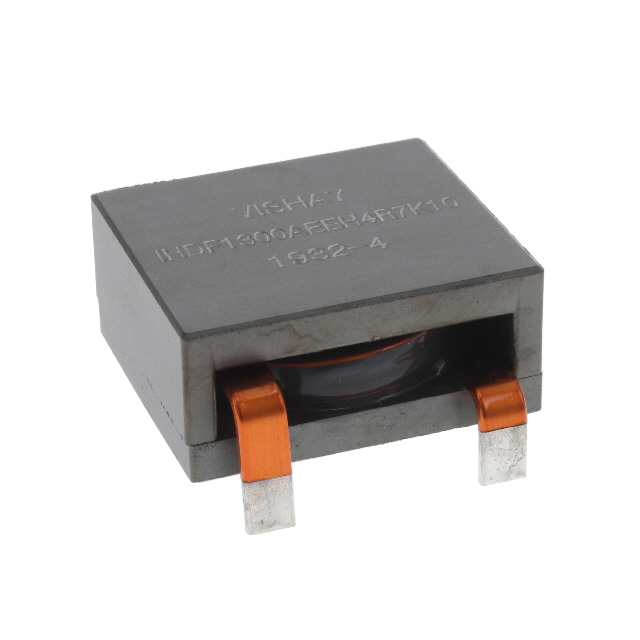

IHDF1300AEEH4R7K10
FIXED IND 4.7UH 59A 1.11 MOHM THManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
4.7 µH Unshielded Inductor 59 A 1.11mOhm Max Nonstandard
Additional Information
Series: IHDF-1300AE-10RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | - |
| Packaging | Tray |
| Package / Case | Nonstandard |
| Size / Dimension | 1.299"" L x 1.299"" W (33.00mm x 33.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | - |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 1.11mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Current - Saturation (Isat) | 92A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.606"" (15.40mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 59 A |
