IFSC1111AZER1R0M01
FIXED IND 1UH 2A 68 MOHM SMDManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More

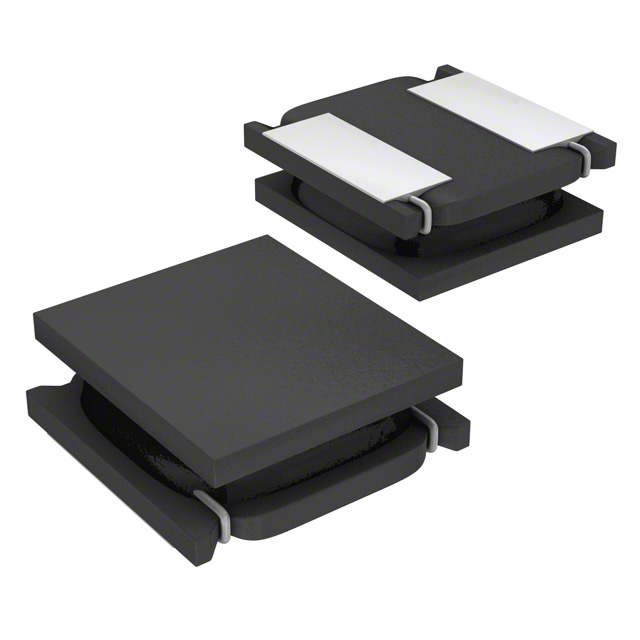

Vishay Dale IFSC-1111AZER1R0M01 is a shielded fixed inductor from the IFSC-1111AZ series. This component features an inductance of 1 µH with a ±20% tolerance, tested at 100 kHz. It offers a current rating of 2 A and a saturation current (Isat) of 1.5 A. The DC resistance (DCR) is a maximum of 68 mOhm. The inductor is designed for surface mounting and comes in a 3.00mm x 3.00mm x 1.00mm nonstandard package, supplied on tape and reel. Operating temperature range is from -55°C to 125°C. This component is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: IFSC-1111AZRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.117"" L x 0.117"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | - |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 68mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 1.5A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 2 A |
