CRCW06030000Z0EBHP
RES SMD 0 OHM JUMPER 1/3W 0603Manufacturer: Vishay Dale
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

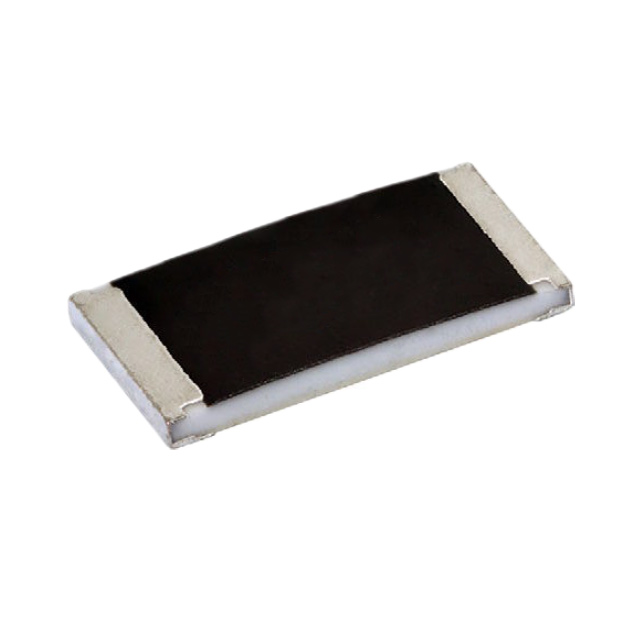

Vishay Dale CRCW-HP e3 series zero-ohm jumper chip resistor, part number CRCW06030000Z0EBHP. This surface-mount component features a thick film composition with a resistance value of 0 Ohms, functioning as a jumper. It is designed for the 0603 (1608 Metric) package size, measuring 0.063" L x 0.033" W (1.60mm x 0.85mm) with a maximum seated height of 0.022" (0.55mm). The CRCW06030000Z0EBHP is rated for automotive applications, meeting AEC-Q200 standards, and offers pulse withstanding capability. The operating temperature range is -55°C to 155°C. This component is supplied in Tape & Reel (TR) packaging. It is commonly utilized in automotive, industrial, and consumer electronics sectors where reliable zero-ohm connections are required.
Additional Information
Series: CRCW-HP e3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | - |
| Tolerance | Jumper |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | - |
| Size / Dimension | 0.063"" L x 0.033"" W (1.60mm x 0.85mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | AEC-Q200 |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| Failure Rate | - |
| Resistance | 0 Ohms |
