TMC0501K500FE02
RES CHAS MNT 1.5K OHM 1% 50WManufacturer: Vishay Dale
Categories: Chassis Mount Resistors
Quality Control: Learn More

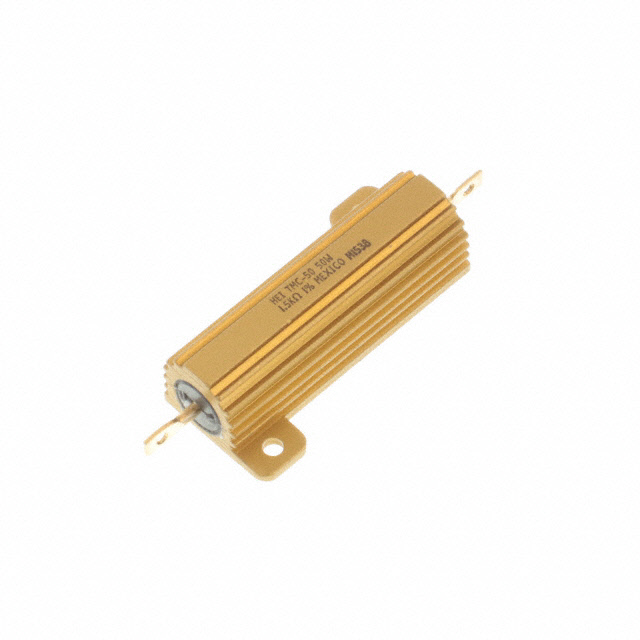

Vishay Dale TMC Series 1.5 kOhm 1% 50W wirewound chassis mount resistor. This component, part number TMC0501K500FE02, features a 1.5 kOhm resistance value with a tight ±1% tolerance and a substantial 50W power rating. Constructed with a wirewound composition and housed in an aluminum coating for efficient heat dissipation, it is designed for robust performance. The resistor includes mounting flanges and solder lug terminals for secure chassis integration. With a broad operating temperature range of -55°C to 250°C and a temperature coefficient of ±20ppm/°C, it is suitable for demanding applications. Its dimensions are 1.968 inches long by 1.140 inches wide, with a seated height of 0.625 inches. This component is often utilized in industrial power supplies, motor controls, and automotive electronics.
Additional Information
Series: TMCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 50W |
| Tolerance | ±1% |
| Lead Style | Solder Lugs |
| Features | Moisture Resistant |
| Packaging | Bulk |
| Package / Case | Axial, Box |
| Temperature Coefficient | ±20ppm/°C |
| Size / Dimension | 1.968"" L x 1.140"" W (49.99mm x 28.96mm) |
| Composition | Wirewound |
| Operating Temperature | -55°C ~ 250°C |
| Mounting Feature | Flanges |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 0.625"" (15.87mm) |
| Failure Rate | - |
| Resistance | 1.5 kOhms |
