RBEF0300R1000KFB00
RES CHAS MNT 0.1 OHM 10% 300WManufacturer: Vishay Dale
Categories: Chassis Mount Resistors
Quality Control: Learn More
100 mOhms ±10% 300W Wirewound Chassis Mount Resistor
Additional Information
Series: RBEFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 300W |
| Tolerance | ±10% |
| Lead Style | Solder Lugs |
| Features | Pulse Withstanding |
| Packaging | Bulk |
| Package / Case | Radial, Tubular |
| Temperature Coefficient | - |
| Size / Dimension | 1.125"" Dia x 8.500"" L (28.58mm x 215.90mm) |
| Composition | Wirewound |
| Operating Temperature | -55°C ~ 415°C |
| Mounting Feature | Brackets (not included) |
| Coating, Housing Type | Vitreous Enamel Coated |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 100 MOhms |
Request a Quote
Clients Also Buy

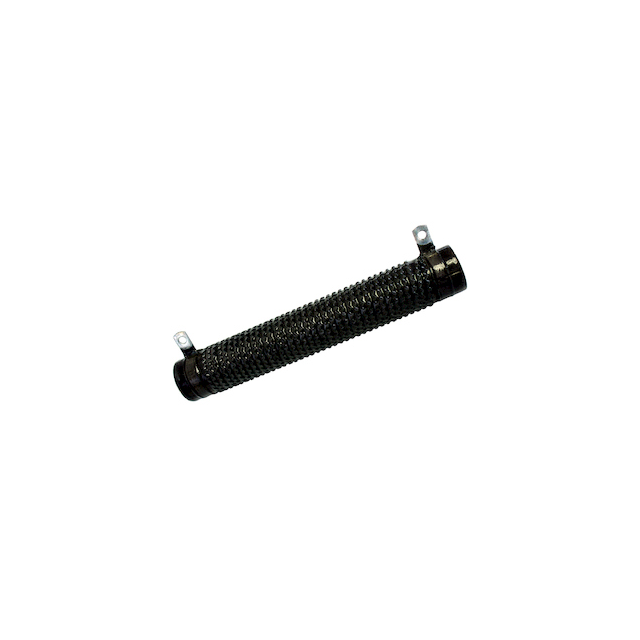

RBEF0300100R0KFB00
RES CHAS MNT 100 OHM 10% 300W

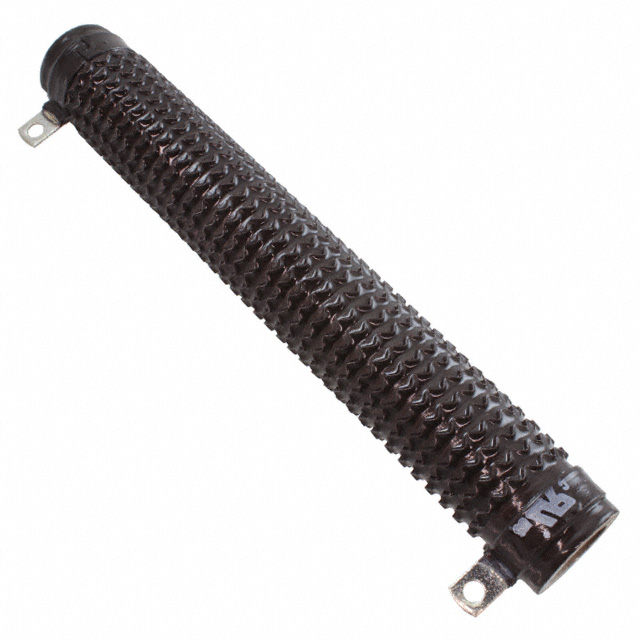

RBEF030025R00KFB00
RES CHAS MNT 25 OHM 10% 300W

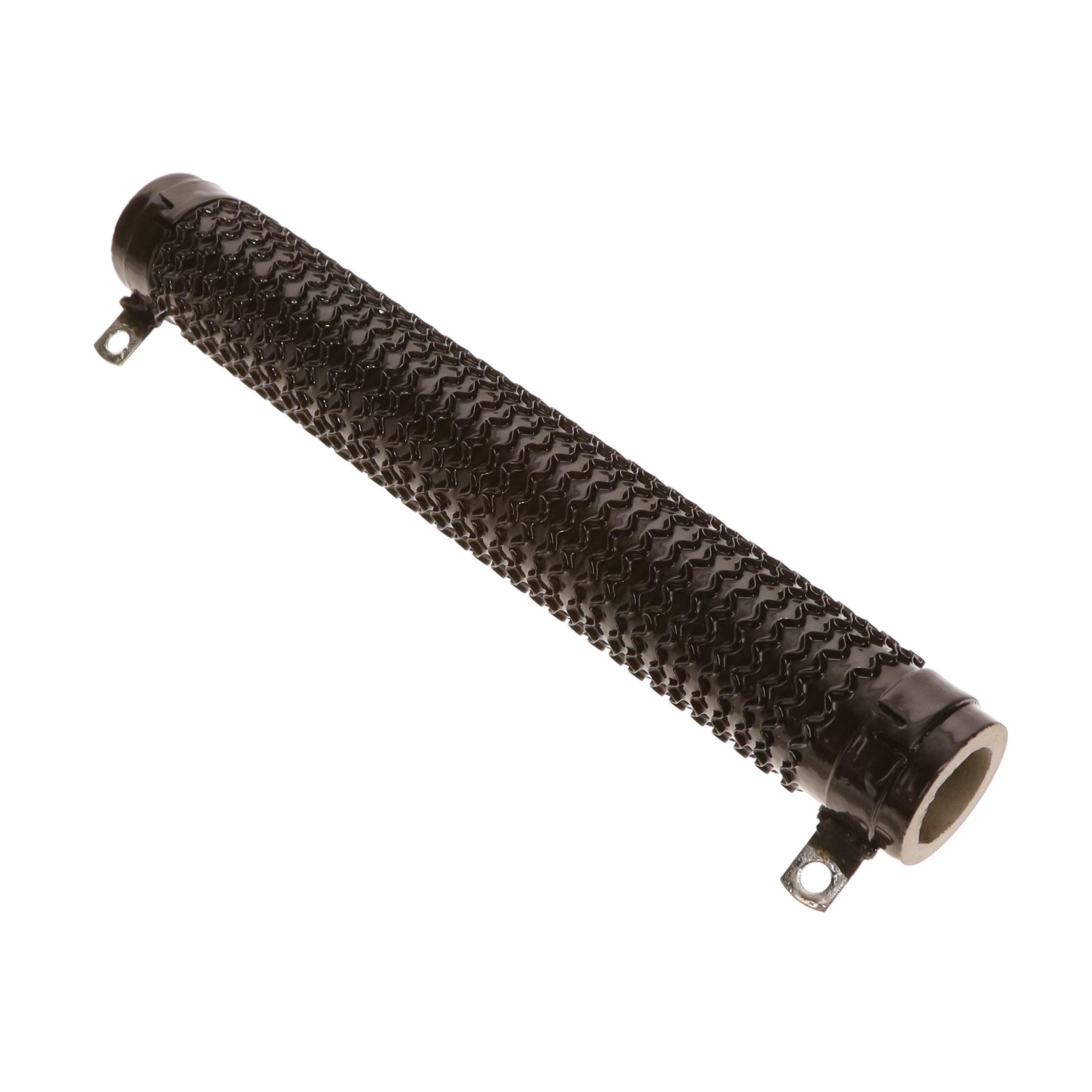

RBEF03004R000KFB00
