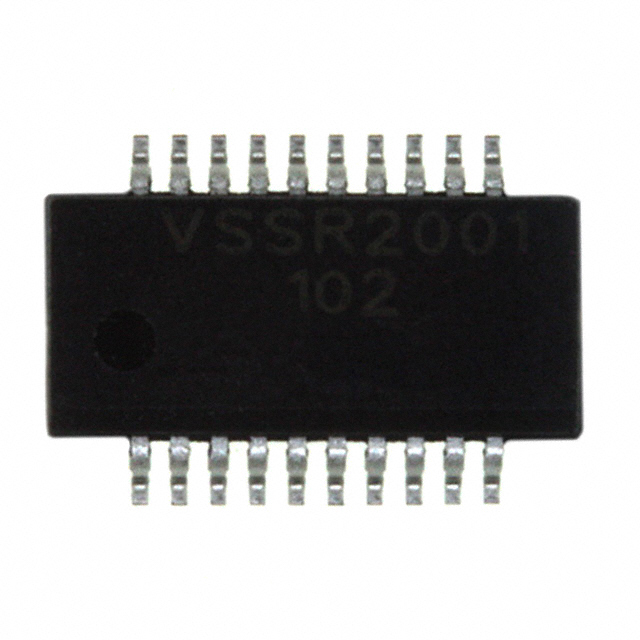

VSSR2001102JTF
RES ARRAY 19 RES 1K OHM 20SSOPManufacturer: Vishay Dale Thin Film
Categories: Resistor Networks, Arrays
Quality Control: Learn More
Vishay Dale Thin Film VSSR series VSSR2001102JTF is a 19-resistor network with a resistance of 1k Ohm and a tolerance of ±5%. Each element is rated for 100mW power dissipation. This bussed network features a temperature coefficient of ±100ppm/°C. The component is housed in a 20-SSOP package with dimensions of 0.341" L x 0.154" W (8.66mm x 3.91mm) and a seated height of 0.069" (1.76mm). Mounting is surface mount, and it is supplied in tape and reel packaging. This resistor array is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: VSSRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 1k |
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 100mW |
| Circuit Type | Bussed |
| Number of Pins | 20 |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.341"" L x 0.154"" W (8.66mm x 3.91mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Supplier Device Package | 20-SSOP |
| Height - Seated (Max) | 0.069"" (1.76mm) |
| Grade | - |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Resistors | 19 |
| Qualification | - |
