VSOR1603103GTF
THIN FILM RES ARRAY 16 PIN ISOLAManufacturer: Vishay Dale Thin Film
Categories: Resistor Networks, Arrays
Quality Control: Learn More
Vishay Dale Thin Film VSOR series 16-pin SOIC resistor array, part number VSOR1603103GTF, offers eight isolated 10k Ohm resistors. Each element provides 100mW power handling with a ±2% tolerance and a ±100ppm/°C temperature coefficient. The component dimensions measure 9.91mm x 3.86mm (0.390" L x 0.152" W) with a seated height of 1.76mm (0.069"). This surface mount device operates across a temperature range of -55°C to 125°C. The VSOR1603103GTF is commonly utilized in high-precision measurement and signal conditioning applications within the telecommunications and industrial automation sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: VSORRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±2% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 100mW |
| Circuit Type | Isolated |
| Number of Pins | 16 |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.390"" L x 0.152"" W (9.91mm x 3.86mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Supplier Device Package | 16-SOIC |
| Height - Seated (Max) | 0.069"" (1.76mm) |
| Grade | - |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Resistors | 8 |
| Qualification | - |
Request a Quote
Clients Also Buy

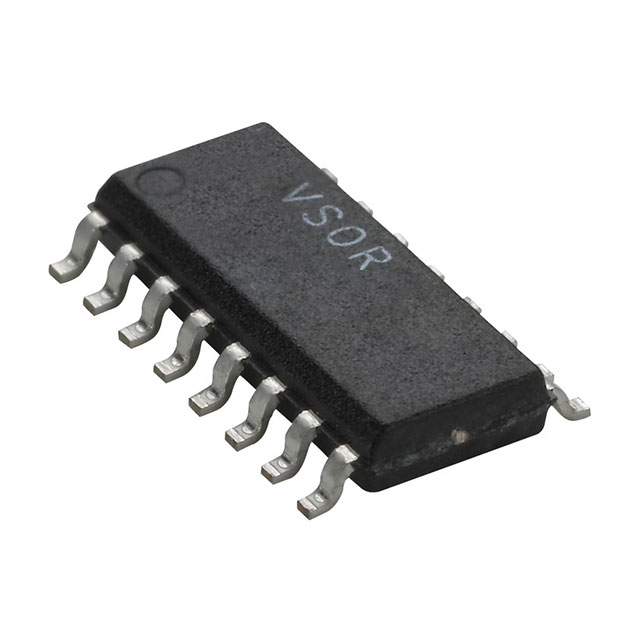

VSOR1601103JTF
