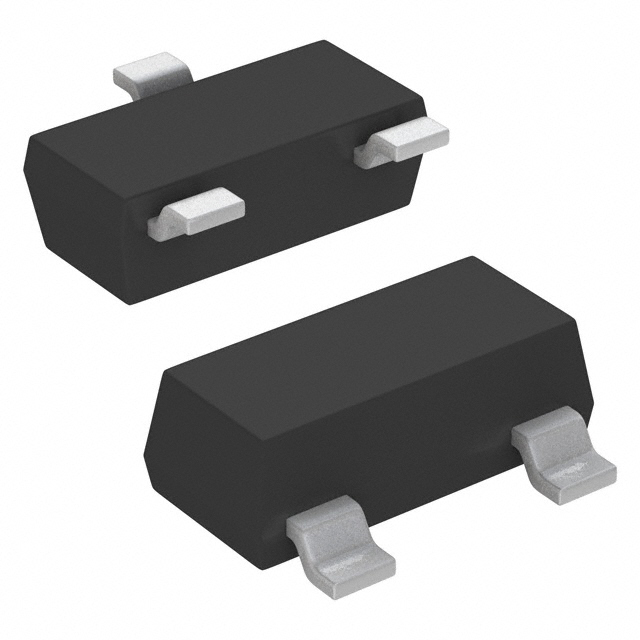

MPMA1002AT1
RES NETWORK 2 RES 5K, 5K OHMManufacturer: Vishay Dale Thin Film
Categories: Resistor Networks, Arrays
Quality Control: Learn More
5k, 5k Ohm ±0.1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±25ppm/°C TO-236-3, SC-59, SOT-23-3
Additional Information
Series: MPMARoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 5k, 5k |
| Tolerance | ±0.1% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 100mW |
| Circuit Type | Voltage Divider |
| Number of Pins | 3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.113"" L x 0.051"" W (2.86mm x 1.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Voltage Divider (TCR Matched) |
| Supplier Device Package | SOT-23 |
| Height - Seated (Max) | 0.044"" (1.12mm) |
| Grade | Automotive |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Resistors | 2 |
| Qualification | AEC-Q200 |
