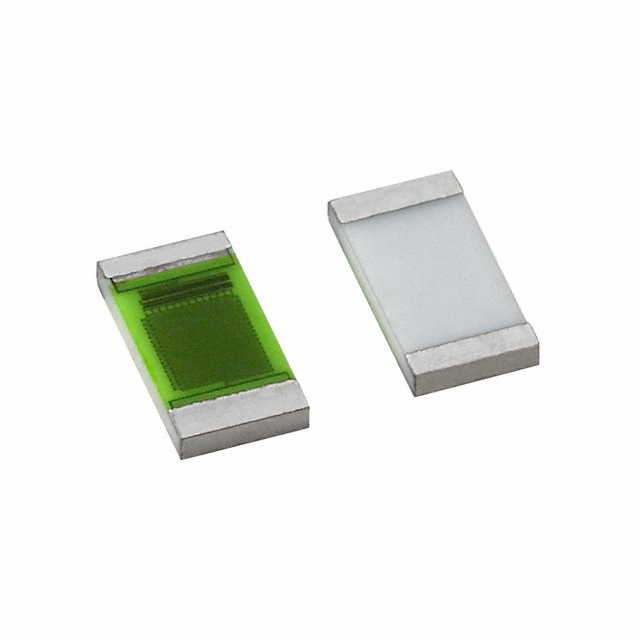

PNM0805E1001JBT0
RES SMD 1K OHM 5% 1/5W 0805Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Dale Thin Film presents the PNM series PNM0805E1001JBT0, a 1 kOhm ±5% surface mount chip resistor. This non-inductive, non-magnetic thin-film resistor is rated for 0.2W (1/5W) power dissipation and features anti-sulfur and moisture-resistant properties. The 0805 (2012 Metric) package measures 0.080" L x 0.050" W with a maximum seated height of 0.033". Operating across a temperature range of -55°C to 155°C, it offers a temperature coefficient of ±25ppm/°C. This component is commonly utilized in industrial, automotive, and medical applications where reliability and precision are critical. The PNM0805E1001JBT0 is supplied on tape and reel.
Additional Information
Series: PNMRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.2W, 1/5W |
| Tolerance | ±5% |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive, Non-Magnetic |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.080"" L x 0.050"" W (2.03mm x 1.27mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | - |
| Resistance | 1 kOhms |
