PLT1206Z3120LBTS
RES SMD 312 OHM 0.01% 0.4W 1206Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
The Vishay Dale Thin Film PLT series offers high-precision surface mount chip resistors for demanding applications. Part number PLT1206Z3120LBTS features a resistance value of 312 Ohms with an exceptional tolerance of ±0.01%. This thin film resistor is rated for 0.4W (2/5W) power dissipation and operates across a temperature range of -55°C to 125°C, with a temperature coefficient of ±5ppm/°C. The 1206 (3216 Metric) package measures 0.126" L x 0.063" W (3.20mm x 1.60mm) and has a seated height of 0.033" (0.84mm). Key attributes include anti-corrosive, flame proof, moisture resistant, and safety features, making it suitable for use in automotive, industrial control, and medical equipment sectors. This component is supplied in Tape & Reel packaging.
Additional Information
Series: PLTRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.4W, 2/5W |
| Tolerance | ±0.01% |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | ±5ppm/°C |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 125°C |
| Number of Terminations | 2 |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | - |
| Resistance | 312 Ohms |
Request a Quote
Clients Also Buy
PLT0603Z1001LBTS
RES SMD 1K OHM 0.01% 0.15W 0603

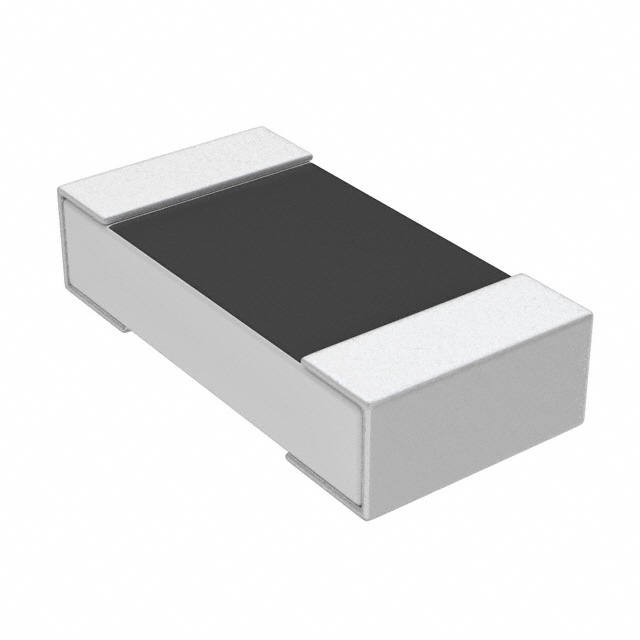

PLT0603Z1002AST5
