PCNM2512K4R70FST5
RES SMD 4.7 OHM 1% 6W 2512Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Dale Thin Film PCNM series surface mount chip resistor, part number PCNM2512K4R70FST5. This 2512 (6432 Metric) sized component offers a nominal resistance of 4.7 Ohms with a tight ±1% tolerance. Engineered for demanding applications, it dissipates up to 6W of power and operates across a wide temperature range of -55°C to 155°C. The thin film construction ensures excellent stability, while features such as flame proof, moisture resistance, and non-magnetic properties contribute to its reliability in industrial, automotive, and telecommunications equipment. Its low profile of 0.018" (0.46mm) and dimensions of 0.259" L x 0.124" W (6.58mm x 3.15mm) make it suitable for high-density PCB designs. Supplied on tape and reel.
Additional Information
Series: PCNMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 6W |
| Tolerance | ±1% |
| Features | Flame Proof, Moisture Resistant, Non-Magnetic, Safety |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2512 (6432 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.259"" L x 0.124"" W (6.58mm x 3.15mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | 2512 |
| Height - Seated (Max) | 0.018"" (0.46mm) |
| Failure Rate | - |
| Resistance | 4.7 Ohms |
Request a Quote
Clients Also Buy

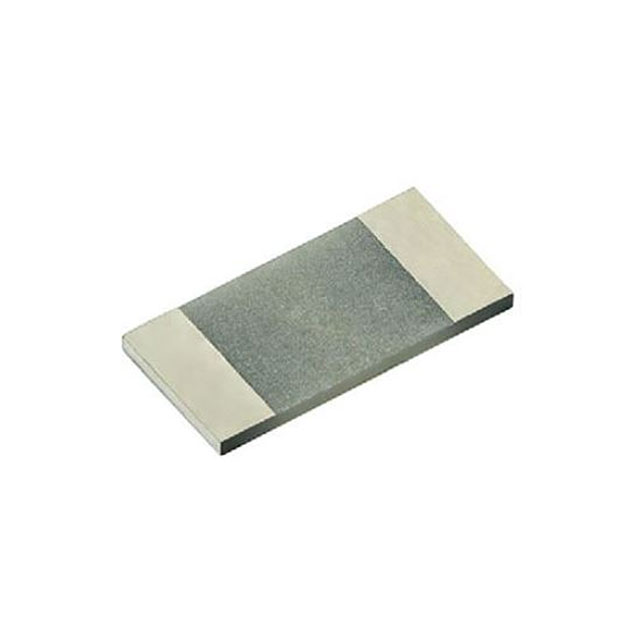

PCNM1206E49R9BST5
